Spirax Sarco 64150, B1H-125 Inverted Bucket Steam Trap, 1/2 in, FNPT, 450 deg F, 125 psi, Cast Iron
CBPN:7501
MPN:64150
Price:
$208.39 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 1/2 in Nominal, FNPT, 5 in Length, 125 psi, Cast Iron, 450 deg F

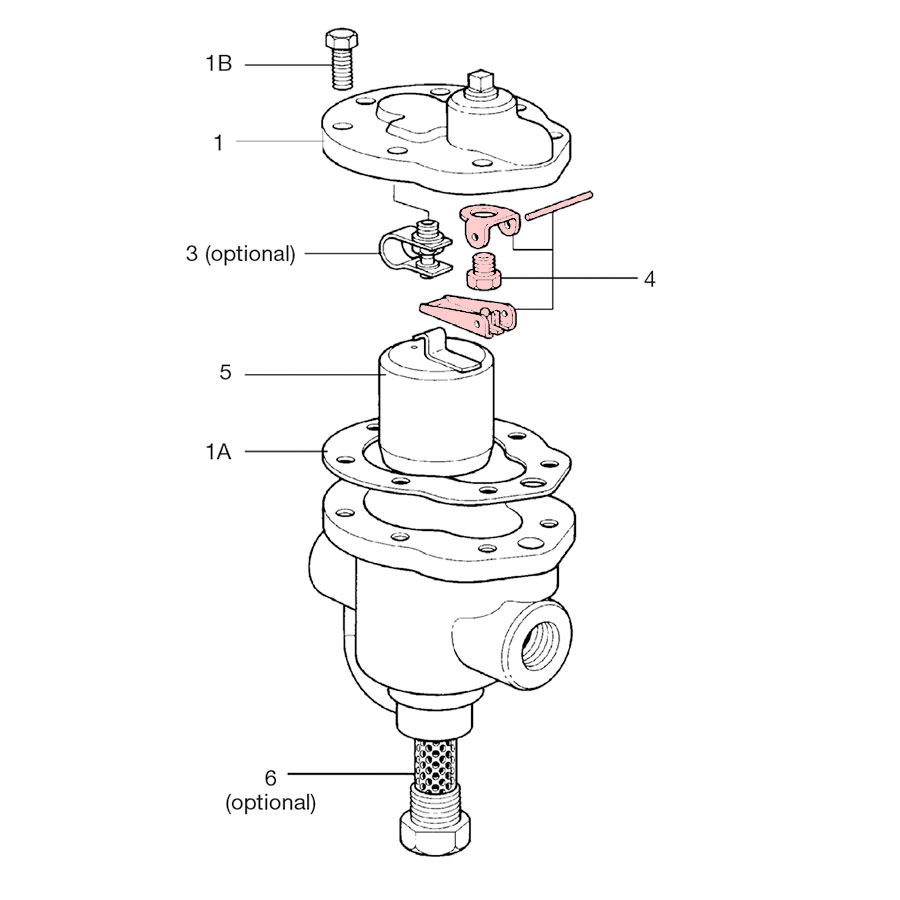

The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close ]to steam temperature.
Spirax Sarco 64150, B1H-125 Inverted Bucket Steam Trap, 1/2 in, FNPT, 450 deg F, 125 psi, Cast Iron
CBPN:7501
MPN:64150
Price:
$208.39 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 1/2 in Nominal, FNPT, 5 in Length, 125 psi, Cast Iron, 450 deg F
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close ]to steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 6.3lbs
End Style: FNPT
Length: 5 in
Material: Cast Iron
Nominal Size: 1/2 in
Series: B Series
Max Operating Pressure: 125 psig
Max Allowable Pressure: 250 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/0-250 psig
Manufacturer Name: Spirax-Sarco Inc
Application: For Steam main drip stations, laundry equipment, industrial dryers and storage tanks
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 250 psig at 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 250 psig Maximum allowable temperature
- Inline horizontal piping configuration
- https://youtu.be/nn1pfrjRXP4
