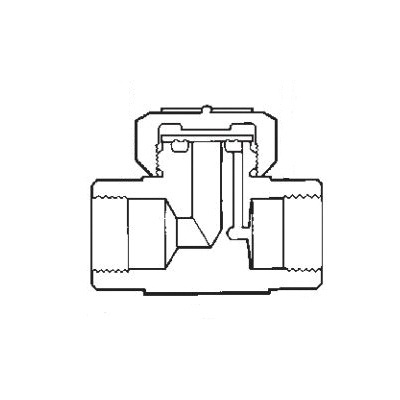

Spirax Sarco 1810290, BTD52L Clean Thermo-Dynamic Steam Trap, 1/2 in, NPT, 850 deg F, 150 psig, 316L Stainless Steel
CBPN: 19004
MPN:1810290
Price:
$1007.03 / EA
DESCRIPTION
Spirax Sarco Clean Thermo-Dynamic Steam Trap, 1/2 in Nominal, NPT, 2.6 in Length, 150 psig, 316L Stainless Steel, 850 deg F, 2.1 in H x 1.4 in W
The BTD52L ThermoDynamic® Steam Trap is constructed entirely of 316L stainless steel and is suitable for aggressive condensate often found in clean steam systems using deionized water. Condensate and air are discharged at saturated steam temperature without the need for a water seal.
Spirax Sarco 1810290, BTD52L Clean Thermo-Dynamic Steam Trap, 1/2 in, NPT, 850 deg F, 150 psig, 316L Stainless Steel
CBPN: 19004
MPN:1810290
Price:
$1007.03 / EA
DESCRIPTION
Spirax Sarco Clean Thermo-Dynamic Steam Trap, 1/2 in Nominal, NPT, 2.6 in Length, 150 psig, 316L Stainless Steel, 850 deg F, 2.1 in H x 1.4 in W
The BTD52L ThermoDynamic® Steam Trap is constructed entirely of 316L stainless steel and is suitable for aggressive condensate often found in clean steam systems using deionized water. Condensate and air are discharged at saturated steam temperature without the need for a water seal.
Specifications
Brand: Spirax Sarco
Weight: 1 lbs
Nominal Size: 1/2 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 145 psig
Max Allowable Pressure: 232 psig/up to 122 deg F
Max Allowable Temperature: 842 deg F/up to 116 psig
Dimensions: 2.1 in H x 1.4 in W
Length: 2.6 in
Manufacturer Name: Spirax-Sarco Inc
Series: BTD52L
Application: Biotechnology, Pharmaceutical, Fine chemical, Food, Dairy and beverage industries: main drip service, WFI system sterilization and Drainage of steam filter housing and separators
Standards and Approvals: European Equipment Directive 2014/68/EU
Item Features
- Maximum allowable pressure: 230 psig at 0 to 850 deg F
- Maximum allowable temperature: 850 deg F at 0 to 230 psig
