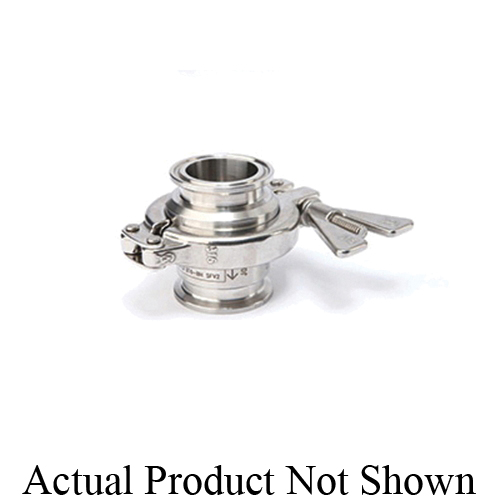

Spirax Sarco 1802955, BT6-BL Low Capacity Sanitary Balanced Pressure Thermostatic Steam Trap, 1/2 in, Sanitary Clamp, 32 to 329 deg F Operating, 87 psig Operating, Stainless Steel
CBPN:142509
MPN:1802955
Price:
$1642.55 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Sanitary, 1/2 in Nominal, Sanitary Clamp, 87 psig Operating, Stainless Steel, 32 to 329 deg F Operating, 2.56 in H x 2.52 in W
The Spirax Sarco BT6-B sanitary balanced pressure thermostatic steam trap is designed to remove condensate from clean and pure steam applications with minimal condensate retention. Applications include sterile steam barriers, block and bleed installations, mains drainage and CIP/SIP of vessels and reactors and process lines. Manufactured in 316L, the crevice free body design of the BT6-B incorporates a 15 deg angled seat to ensure full drainability. The standard element is extremely sensitive to changes in condensate temperature and is designed to open with a minimum of sub-cooling, less than 3.6 degF (2 degC) from steam saturation temperature at pressures below 36 psig (2.5 barg) for typical operating conditions. Exact operating performance may be affected by operating pressure, installation and ambient conditions. Each trap is individually packaged within a 'clean' environment with protective end caps and sealed in a protective plastic bag.
Spirax Sarco 1802955, BT6-BL Low Capacity Sanitary Balanced Pressure Thermostatic Steam Trap, 1/2 in, Sanitary Clamp, 32 to 329 deg F Operating, 87 psig Operating, Stainless Steel
CBPN:142509
MPN:1802955
Price:
$1642.55 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Sanitary, 1/2 in Nominal, Sanitary Clamp, 87 psig Operating, Stainless Steel, 32 to 329 deg F Operating, 2.56 in H x 2.52 in W
The Spirax Sarco BT6-B sanitary balanced pressure thermostatic steam trap is designed to remove condensate from clean and pure steam applications with minimal condensate retention. Applications include sterile steam barriers, block and bleed installations, mains drainage and CIP/SIP of vessels and reactors and process lines. Manufactured in 316L, the crevice free body design of the BT6-B incorporates a 15 deg angled seat to ensure full drainability. The standard element is extremely sensitive to changes in condensate temperature and is designed to open with a minimum of sub-cooling, less than 3.6 degF (2 degC) from steam saturation temperature at pressures below 36 psig (2.5 barg) for typical operating conditions. Exact operating performance may be affected by operating pressure, installation and ambient conditions. Each trap is individually packaged within a 'clean' environment with protective end caps and sealed in a protective plastic bag.
Specifications
Brand: Spirax Sarco
Weight: 1.5lbs
End Style: Sanitary Clamp
Material: Stainless Steel
Nominal Size: 1/2 in
Series: BT6-BL
Type: Sanitary
Dimensions: 2.56 in H x 2.52 in W
Max Operating Pressure: 6 barg
Max Allowable Pressure: 10 barg/up to 140 deg C
Max Allowable Temperature: 177 deg C/up to 9.2 barg
Manufacturer Name: Spirax-Sarco Inc
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME BPE,ASTM A276 316L,ISO 4287-1997,FDA CFR title 21,part 177 section 1550,European Pressure Equipment Directive 2014/68/EU and USP24 class VI
Item Features
- PN10 body design condition
- Maximum allowable pressure: 145 psig at 284 deg F
- Maximum allowable temperature: 350 deg F at 133 psig
- Minimum allowable temperature: -425 deg F
- Maximum operating temperature: 329 deg F at 87 psig
- Low capacity
- Internal surfaces have a finish of mechanical and electro polishing to 0.375 mm (15 m-in Ra)
- External surfaces have a finish of 1.0 mm (40 m-in Ra)
- Vertical installation
