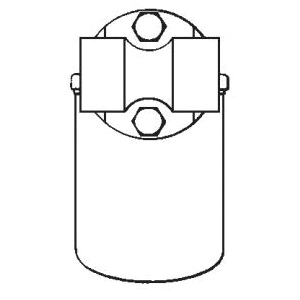

Spirax Sarco 1132260, UIB30H/5 High Capacity Sealed Universal Inverted Bucket Steam Trap, 425 deg C, 30 bar, Stainless Steel
CBPN: 57506
MPN:1132260
DESCRIPTION
Spirax Sarco Sealed Inverted Bucket Steam Trap, High Capacity, 30 bar, Stainless Steel, 425 deg C
The UIB30 and UIB30H are sealed inverted bucket steam traps for either horizontal or vertical installation (with the cover hanging downwards). The UIB30H is designed for higher capacities. When installed with a suitable pipeline connector (available separately from Spirax Sarco) the UIB can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged end connections. The cover is also available with the option of a threaded base port to allow drainage.
Spirax Sarco 1132260, UIB30H/5 High Capacity Sealed Universal Inverted Bucket Steam Trap, 425 deg C, 30 bar, Stainless Steel
CBPN: 57506
MPN:1132260
DESCRIPTION
Spirax Sarco Sealed Inverted Bucket Steam Trap, High Capacity, 30 bar, Stainless Steel, 425 deg C
The UIB30 and UIB30H are sealed inverted bucket steam traps for either horizontal or vertical installation (with the cover hanging downwards). The UIB30H is designed for higher capacities. When installed with a suitable pipeline connector (available separately from Spirax Sarco) the UIB can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged end connections. The cover is also available with the option of a threaded base port to allow drainage.
Specifications
Item Features
- ASME 300 body design conditions
- Maximum allowable pressure: 49.6 barg at 38 deg C
- Maximum allowable temperature: 425 deg C at 28 barg
- 32 barg maximum operating pressure 32 barg for saturated steam service
- Maximum cold hydraulic test pressure: 75 barg
- In-line and swivel connector piping configuration
