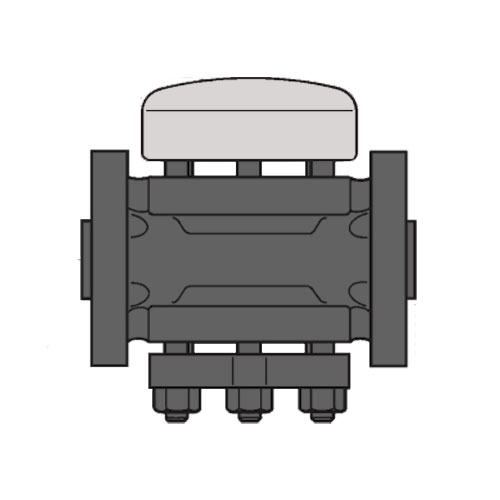

Spirax Sarco 0686792, TD62M Standard Capacity Thermo-Dynamic Steam Trap With Replaceable Seats, 1 in, ANSI 600 Flange, 900 psig, Steel Alloy
CBPN: 153916
MPN:0686792
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, Standard Capacity, 1 in Nominal, ANSI 600 Flange, 6.3 in Length, 900 psig, Steel Alloy
The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 barg. The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperatures, wind, rain etc.
Spirax Sarco 0686792, TD62M Standard Capacity Thermo-Dynamic Steam Trap With Replaceable Seats, 1 in, ANSI 600 Flange, 900 psig, Steel Alloy
CBPN: 153916
MPN:0686792
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, Standard Capacity, 1 in Nominal, ANSI 600 Flange, 6.3 in Length, 900 psig, Steel Alloy
The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 barg. The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low outside temperatures, wind, rain etc.
Specifications
Item Features
- Maximum allowable pressure: 1500 psig
- Maximum allowable temperature: 977 deg F
- Cold hydraulic test pressure: 2250 psig
- 20 psig minimum pressure for satisfactory operation
- Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
- Horizontal installation
