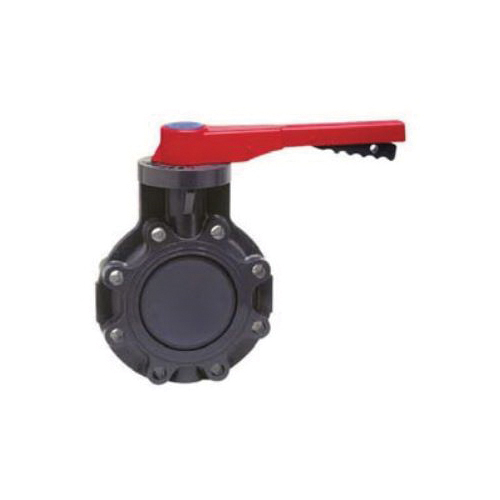

Spears® 723311-060 Lug Butterfly Valve, 6 in Nominal, 150 lb, PVC Body, FKM Softgoods, Domestic
CBPN: 218965
UPC:054211421123
MPN:723311-060
DESCRIPTION
Spears® Butterfly Valve, Lug, 6 in Nominal, 150 lb, 73 deg F, Lever Handle Actuator, 2-3/4 in Inlet to Outlet Length, 10-7/8 in Top to Inlet Center, PVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, FKM, Gray, 11 in Dia x 16-13/32 in H, Domestic
Spears® patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal-off. Ideally suited for flow control or throttling, this high-performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications.
Spears® 723311-060 Lug Butterfly Valve, 6 in Nominal, 150 lb, PVC Body, FKM Softgoods, Domestic
CBPN: 218965
MPN:723311-060
UPC:054211421123
DESCRIPTION
Spears® Butterfly Valve, Lug, 6 in Nominal, 150 lb, 73 deg F, Lever Handle Actuator, 2-3/4 in Inlet to Outlet Length, 10-7/8 in Top to Inlet Center, PVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, FKM, Gray, 11 in Dia x 16-13/32 in H, Domestic
Spears® patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal-off. Ideally suited for flow control or throttling, this high-performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications.
Specifications
Item Features
- Special off-set disc lifts quickly from seat to reduce wear and reduce operating torque
- Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
- Interlocking body and seat prevents wash-out or blow-out
- Fully isolated solid type 316L stainless steel stem
- Reversible high impact polypropylene lever handle with 7-position stops and built-in lockout
- Pressure rated to 150 psi at 73 deg F including dead-end service
- FKM O-ring
