Spears® 4238-130

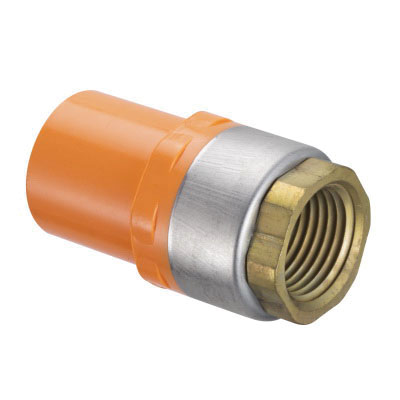

Spears® FlameGuard® 4238-130 Bushing, 1 x 1/2 in, Spigot x FNPT, CPVC, Domestic

CBPN: 273875

UPC:054211174944

MPN:4238-130

Price:
$12.09 / EA

DESCRIPTION

Spears® FlameGuard® Bushing, Fitting/Connector Type: Bushing, 1 x 1/2 in Nominal, Spigot x FNPT, 2-1/4 in Length, 175 psi, Molded, CPVC, Orange, 150 deg F, 1-3/16 in W, Domestic

Spears® Patented Special Reinforced (SR) plastic female thread design is one of the most significant advancements in the use of CPVC Fire Sprinkler System threaded fittings. Not just an added ring, this unique precompression design compensates for expansion forces generated from tapered pipe thread joint make-up. Radial stress is no longer a problem in normal installations and easily managed in severe over-tightening situations.

Spears® FlameGuard® 4238-130 Bushing, 1 x 1/2 in, Spigot x FNPT, CPVC, Domestic

CBPN: 273875

MPN:4238-130

UPC:054211174944

Price:
$12.09 / EA

Spears logo

DESCRIPTION

Spears® FlameGuard® Bushing, Fitting/Connector Type: Bushing, 1 x 1/2 in Nominal, Spigot x FNPT, 2-1/4 in Length, 175 psi, Molded, CPVC, Orange, 150 deg F, 1-3/16 in W, Domestic

Spears® Patented Special Reinforced (SR) plastic female thread design is one of the most significant advancements in the use of CPVC Fire Sprinkler System threaded fittings. Not just an added ring, this unique precompression design compensates for expansion forces generated from tapered pipe thread joint make-up. Radial stress is no longer a problem in normal installations and easily managed in severe over-tightening situations.

Specifications

BrandSpears®
Weight0.14 lbs
Fitting/Connector TypeBushing
Nominal Size1 x 1/2 in
End StyleSpigot x FNPT
MaterialCPVC
ColorOrange
Dimensions1-3/16 in W
Length2-1/4 in
Manufacturer NameSpears Manufacturing
Method of ManufactureMolded
Pressure Rating175 psi
Temperature Rating150 deg F
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM D-1784/F-438/F-439 | NFPA 13/13D/13R | UL Listed
