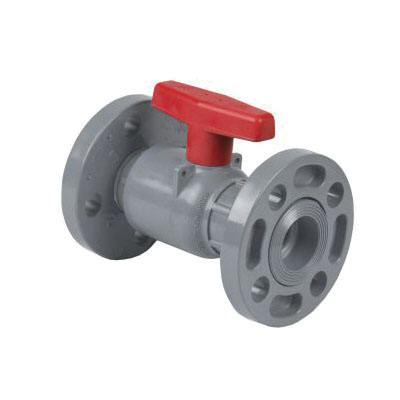

Spears® 2133-060C Compact Regular Ball Valve, 6 in Nominal, Flanged End Style, CPVC Body, FKM Softgoods, Domestic
CBPN: 236892
UPC:054211501474
MPN:2133-060C
Price:
$3061.94 / EA
DESCRIPTION
Spears® Regular Ball Valve, Compact, 6 in Nominal, Flanged, 150 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 8-1/16 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, FKM, Gray, Domestic
This heavy bodied, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.
Spears® 2133-060C Compact Regular Ball Valve, 6 in Nominal, Flanged End Style, CPVC Body, FKM Softgoods, Domestic
CBPN: 236892
MPN:2133-060C
UPC:054211501474
Price:
$3061.94 / EA
DESCRIPTION
Spears® Regular Ball Valve, Compact, 6 in Nominal, Flanged, 150 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 8-1/16 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, FKM, Gray, Domestic
This heavy bodied, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.
Specifications
Brand: Spears®
Weight: 35.44 lbs
Nominal Size: 6 in
End Style: ANSI 150 Flange
Pressure Rating: 150 psi
Body Material: CPVC
Softgoods Material: FKM
Actuator Type: T-Handle
Ball Material: CPVC
Color: Gray
Manufacturer Name: Spears Manufacturing
Temperature Rating: 200 deg F
Top to Inlet Center: 8-1/16 in
Trim Material: CPVC Stem and PTFE Seat
Type: Compact
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM F1970 | NSF Approved
Item Features
- Heavy bodied PVC or CPVC construction
- High impact polypropylene handle
- Full SCH 80/XH bore
- FKM O-ring
