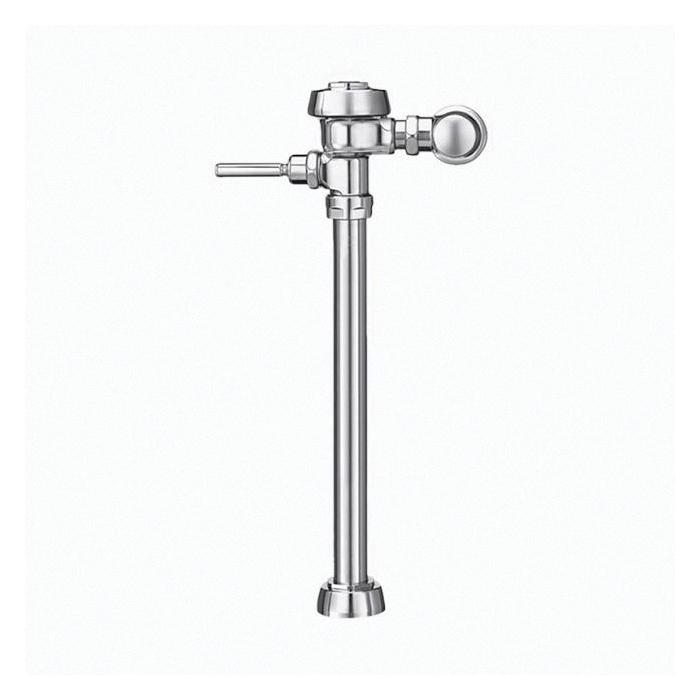

Sloan® Royal® 3010500 117-6.5 Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

CBPN:62124

UPC:671254019515

MPN:3010500

Price:

$228.50 / EA

QTY

Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 117-6.5, Service Sink Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

CBPN:62124

MPN:3010500

UPC:671254019515

Price:

$228.50 / EA

QTY

Brand: Sloan®

Weight: 8.198 lbs

Flush Rate: 3.5 gpf

Inlet Size: 1 in IPS

Spud Coupling: 1-1/2 in

Pressure Rating: 15 to 80 psi

Finish/Color: Polished Chrome

Connection Location: Top Spud

Fixture Type: Service Sink

Handle Type: Non-Hold Open Oscillating

Manufacturer Name: Sloan Valve Company

Material: Semi-Red Brass

Rough-In Size: 24 in

Series: 117, 117-6.5

Type: Single-Flush

Valve Design: Diaphragm

Domestic/Import: Domestic

Country of Origin: US

Standard flush volume is 6.5 gpf/24.6 lpf
Flushometers may be ordered with a handle at the front or a push-button actuator
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece
Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
Exposed service sink flushometer, for use with top spud service sinks
