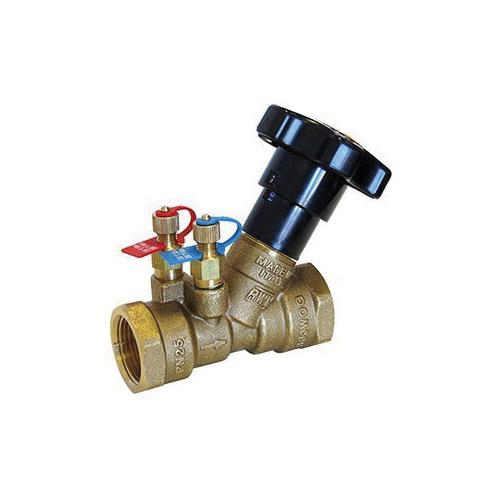

Gruvlok® 0763100062 FIG MBV-T-9517 Fixed Orifice Double Regulating Valve, 1-1/4 in Nominal, FNPT End Style, 300 psi Working Pressure, 8.56 to 19.81 gpm Flow Rate, Brass Body, Import
CBPN: 294866
UPC:662428521811
MPN:0763100062
Price:
$257.85 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9517, 1-1/4 in Nominal, NPT End Style, 300 psi Working Pressure, 300 lb WOG Pressure Class, 160 deg F, 8.56 to 19.81 gpm Flow Rate, Handwheel Actuator, Brass Body, Perox Softgoods, Import
Fixed orifice DZR brass double regulating valve. Intended for HVAC use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Gruvlok® 0763100062 FIG MBV-T-9517 Fixed Orifice Double Regulating Valve, 1-1/4 in Nominal, FNPT End Style, 300 psi Working Pressure, 8.56 to 19.81 gpm Flow Rate, Brass Body, Import
CBPN: 294866
MPN:0763100062
UPC:662428521811
Price:
$257.85 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9517, 1-1/4 in Nominal, NPT End Style, 300 psi Working Pressure, 300 lb WOG Pressure Class, 160 deg F, 8.56 to 19.81 gpm Flow Rate, Handwheel Actuator, Brass Body, Perox Softgoods, Import
Fixed orifice DZR brass double regulating valve. Intended for HVAC use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Specifications
Brand: Gruvlok®
Weight: 2.78 lbs
Nominal Size: 1-1/4 in
End Style: FNPT
Pressure Class: 300 lb WOG
Flow Rate: 8.56 to 19.81 gpm
Body Material: Brass
Actuator Type: Handwheel
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 300 psi Working
Series: FIG MBV-9517
Softgoods Material: EPDM Perox
Temperature Rating: 160 deg F
Type: Fixed Orifice
Includes: DZR Brass Venturi Insert/Balancing/Disc Cone/Disc Stem/Bonnet/Test Point/Union, PTFE Gasket Disc, EPDM Perox Disc O-Ring/Stem, Brass Stem, Spring Steel Stop Ring, ABS (Blue) Hand Wheel and Zinc Plated Steel Nut
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: ASME B1.20.1-NPT | ASTM B124 C37700 Stem/Test Point
Item Features
- Threaded F/F (ASME B1.20.1 - NPT) or solder joint ends (ASME B16.22). Design according to BS7350. T
- With test points
