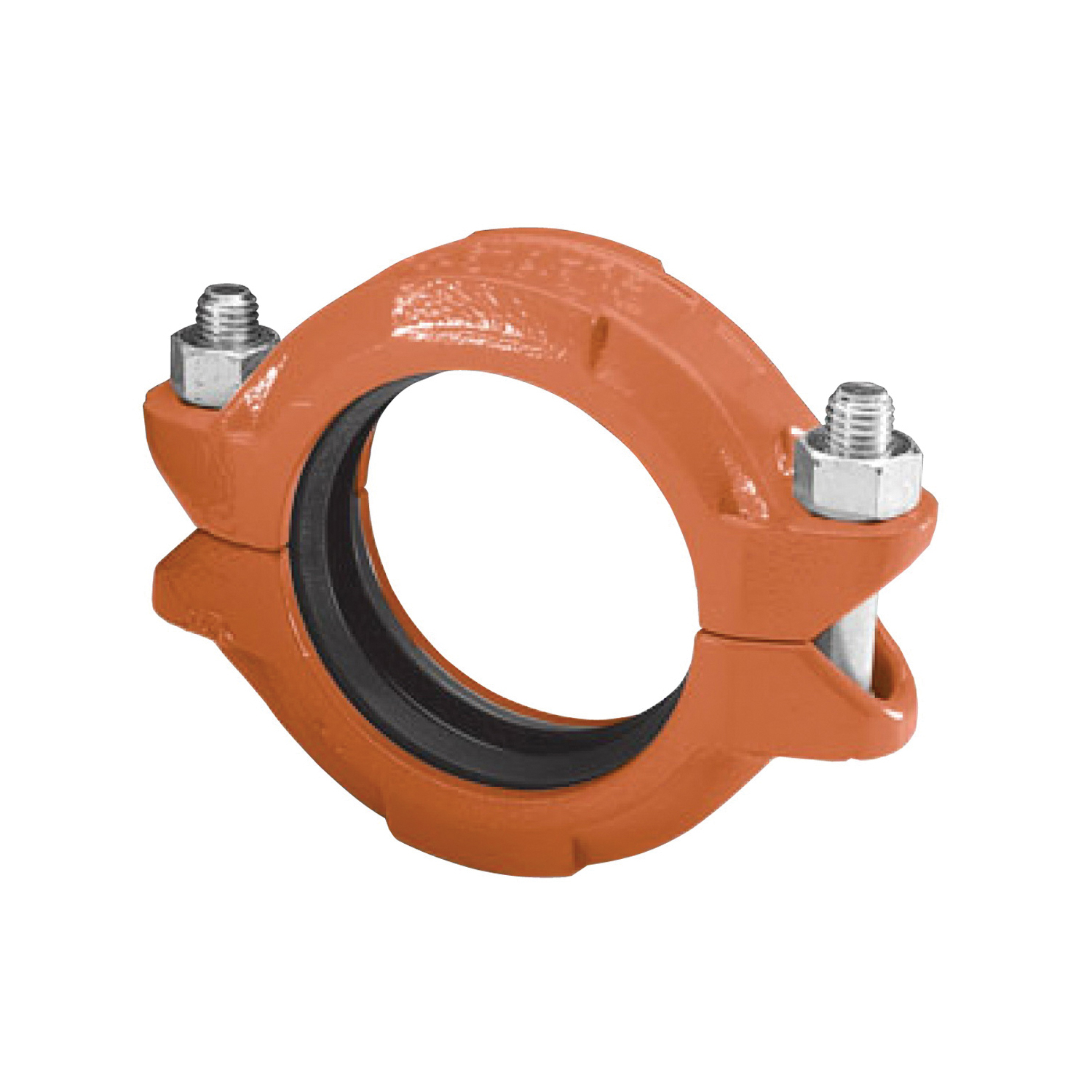

Gruvlok® 0390004612 FIG 7001 Flexible Coupling With Flush Gap EPDM Gasket, 14 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN: 291732
UPC:690291737572
MPN:0390004612
Price:
$444.96 / EA
DESCRIPTION
Gruvlok® Coupling, 2-Piece Standard Flexible, Series: FIG 7001-2, Fitting/Connector Type: Coupling, 14 in Nominal, Grooved, 3 in Thickness, 19-3/4 in Length, 350 psi, Ductile Iron, Rust Inhibiting Painted, Orange, 16-1/4 in OD x 3 in W, Domestic
Gruvlok® introduces new 2-piece large diameter standard groove couplings in both rigid and flexible styles.
Gruvlok® 0390004612 FIG 7001 Flexible Coupling With Flush Gap EPDM Gasket, 14 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN: 291732
MPN:0390004612
UPC:690291737572
Price:
$444.96 / EA
DESCRIPTION
Gruvlok® Coupling, 2-Piece Standard Flexible, Series: FIG 7001-2, Fitting/Connector Type: Coupling, 14 in Nominal, Grooved, 3 in Thickness, 19-3/4 in Length, 350 psi, Ductile Iron, Rust Inhibiting Painted, Orange, 16-1/4 in OD x 3 in W, Domestic
Gruvlok® introduces new 2-piece large diameter standard groove couplings in both rigid and flexible styles.
Specifications
Brand: Gruvlok®
Weight: 37.07 lbs
Fitting/Connector Type: Coupling
Nominal Size: 14 in
End Style: Grooved
Finish: Rust Inhibiting Orange Painted
Material: Ductile Iron
Gasket Material: Flush Gap EPDM
Color: Orange
Dimensions: 16-1/4 in OD x 3 in W
Length: 19-3/4 in
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 350 psi
Series: FIG 7001-2
Thickness: 3 in
Type: 2-Piece Standard Flexible
Includes: Grade E Green EPDM Flush Gap Gasket, Stainless Steel Bolts and Nuts
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A563 Heavy Hex Nuts/Housing | ASTM D2000 Gasket | AWWA C-606 Grooves | SAE J429 Bolts
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- No special grooves or grooving tools needed
- No special fittings needed
- No special valves needed
- Up to 23% less weight than competitive models
- Gasket recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services, not for use in petroleum applications
