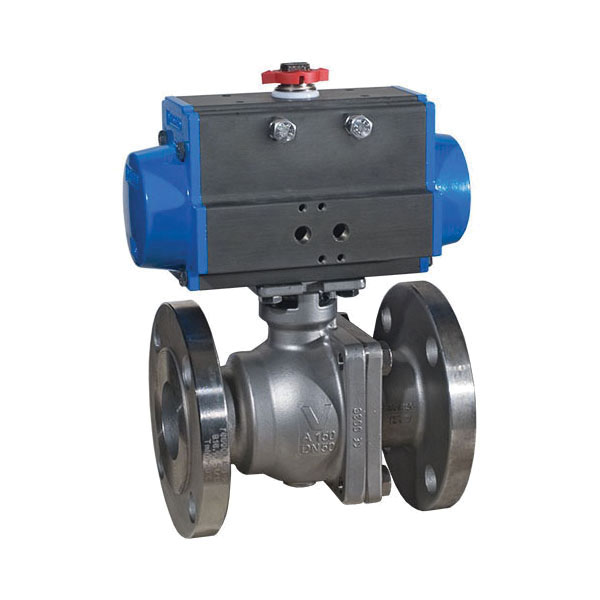

Bonomi 8P766002-4 2-Way Direct Mount Split Body Pneumatic Actuated Ball Valve, Spring Return, 4 in, Flanged, 150 lb, 316 Stainless Steel Body, Full Port, FKM/Graphoil/PTFE Softgoods, Import
CBPN: 229763
MPN:8P766002-4
DESCRIPTION
Bonomi North America Ball Valve Package, 2-Way Direct Mount Split Body, Series: 766000, 4 in Nominal, Flanged, 150 lb, -4 to 400 deg F, Full Port, 4 in Orifice, Pneumatic Spring Return Actuator, 304/316 Stainless Steel Ball, 9.02 in Inlet to Outlet Length, 13.34 in Top to Inlet Center, 316 Stainless Steel Body, 304 Stainless Steel/PTFE Trim, FKM/Graphoil/PTFE, 14.65 in L x 5.83 in W x 17.87 in H, Import
The 8P766002 series pneumatic actuator assembled package features the 766000 series ANSI Class 150, full port, stainless steel split body, ISO 5211 direct mount flanged ball valve. This valve is designed to ANSI 16.5, ANSI 16.10, and ANSI 16.34. It is also certified to API 607, 6th edition and meets NACE MR 0175 and NACE MR 0103. A grounded ball and stem is standard. The Valbia pneumatic actuator comes with a hard-anodized aluminum body and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Bonomi 8P766002-4 2-Way Direct Mount Split Body Pneumatic Actuated Ball Valve, Spring Return, 4 in, Flanged, 150 lb, 316 Stainless Steel Body, Full Port, FKM/Graphoil/PTFE Softgoods, Import
CBPN: 229763
MPN:8P766002-4
DESCRIPTION
Bonomi North America Ball Valve Package, 2-Way Direct Mount Split Body, Series: 766000, 4 in Nominal, Flanged, 150 lb, -4 to 400 deg F, Full Port, 4 in Orifice, Pneumatic Spring Return Actuator, 304/316 Stainless Steel Ball, 9.02 in Inlet to Outlet Length, 13.34 in Top to Inlet Center, 316 Stainless Steel Body, 304 Stainless Steel/PTFE Trim, FKM/Graphoil/PTFE, 14.65 in L x 5.83 in W x 17.87 in H, Import
The 8P766002 series pneumatic actuator assembled package features the 766000 series ANSI Class 150, full port, stainless steel split body, ISO 5211 direct mount flanged ball valve. This valve is designed to ANSI 16.5, ANSI 16.10, and ANSI 16.34. It is also certified to API 607, 6th edition and meets NACE MR 0175 and NACE MR 0103. A grounded ball and stem is standard. The Valbia pneumatic actuator comes with a hard-anodized aluminum body and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
Specifications
Item Features
- Direct mount ISO 5211/square stem
- Blow out proof stem, adjustable stem packing
- PTFE seat, packing, thrust washer and FKM O-ring
- Antistatic device
- 100% tested
- 304 stainless steel stem
- PTFE/graphoil body seal
- Graphoil stem seal
