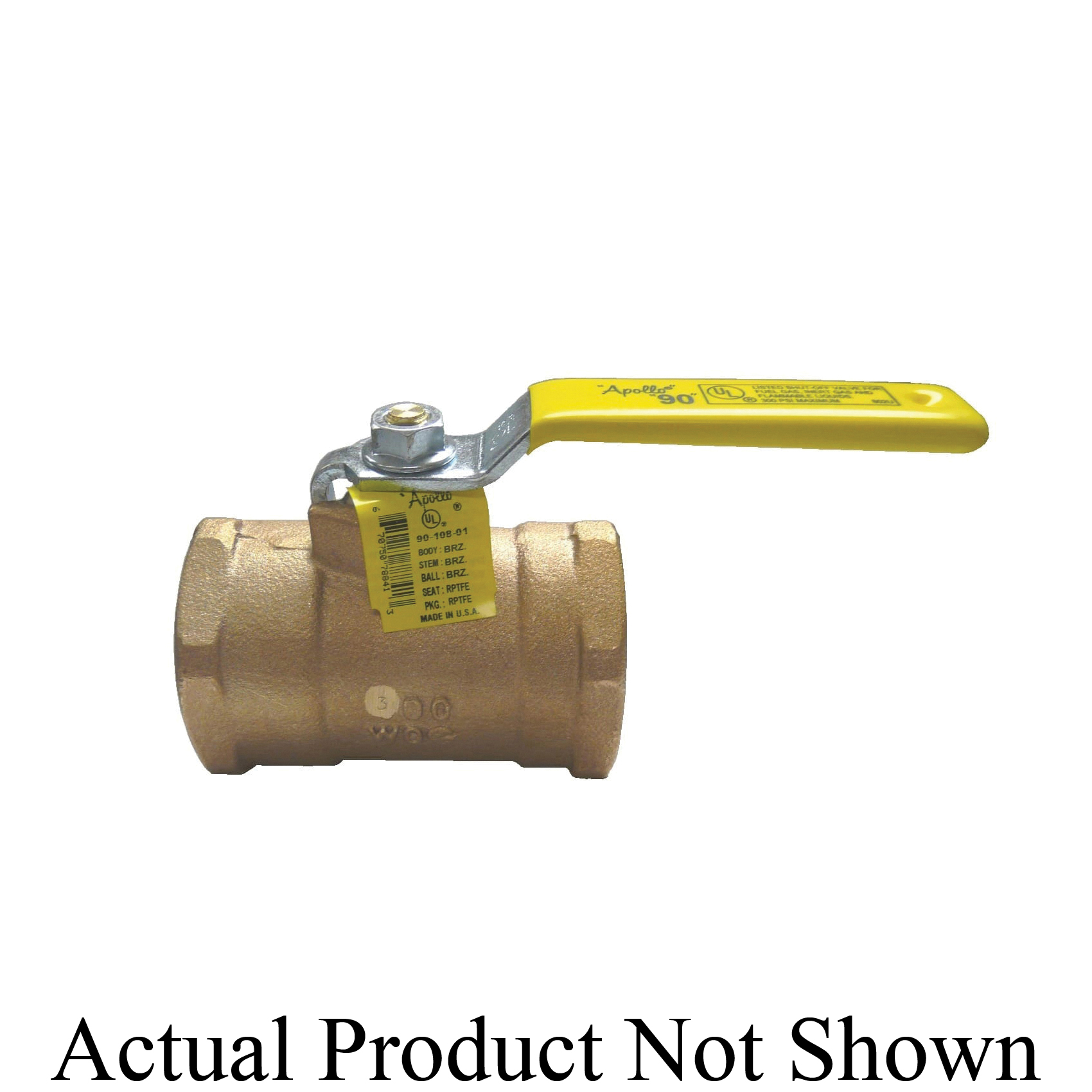

Apollo™ 9010701A 90-100 90-100 Uni-Body Ball Valve, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port
CBPN: 1360
UPC:670750609565
MPN:9010701A
Price:
$144.11 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, Uni-Body, Series: 90-100, 1-1/2 in Nominal, FNPT End Style, 400 psig CWP/150 psig SWP Pressure, Standard Port, Lever Handle Actuator, Chrome Plated Brass Ball, 3.79 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE Softgoods, Domestic
Apollo™ 9010701A 90-100 90-100 Uni-Body Ball Valve, 1-1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port
CBPN: 1360
MPN:9010701A
UPC:670750609565
Price:
$144.11 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, Uni-Body, Series: 90-100, 1-1/2 in Nominal, FNPT End Style, 400 psig CWP/150 psig SWP Pressure, Standard Port, Lever Handle Actuator, Chrome Plated Brass Ball, 3.79 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.99 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Rating: 400 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: RPTFE
Actuator Type: Lever Handle
Ball Material: Brass
Inlet to Outlet Length: 3.79 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Fuel/Water
Orifice Size: 1 in
Series: 90-100
Top to Inlet Center: 2.87 in
Trim Material: Brass/RPTFE
Type: Uni-Body
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B16 Ball/Retainer/Gland Nut/Stem | ASTM B584-C84400 Body | MSS SP-110 | UL Listed | PROP65: Cancer and Reproductive Harm
Item Features
- Reinforced seat and seal
- Blow-out proof stem design
- Adjustable packing gland
- One piece bronze body
- Compact
- Zinc plated steel lever handle with vinyl grip
- RPTFE seat and brass stem
