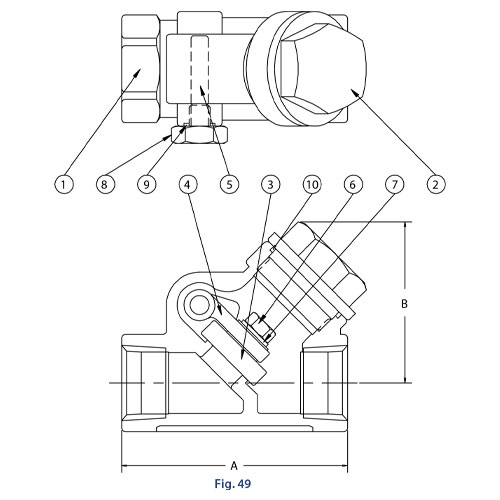

ALOYCO 49EC02014 FIG 49 Y-Pattern Swing Check Valve, 1-1/2" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body
CBPN: 265895
MPN:49EC02014
Price:
$601.02 / EA
DESCRIPTION
ALOYCO Swing Check Valve, Y-Pattern, Figure 49, 1-1/2 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body
**This item may be subject to a minimum order quantity.**
ALOYCO 49EC02014 FIG 49 Y-Pattern Swing Check Valve, 1-1/2" Nominal, FNPT End Style, 200 CWP, Stainless Steel Body
CBPN: 265895
MPN:49EC02014
Price:
$601.02 / EA
DESCRIPTION
ALOYCO Swing Check Valve, Y-Pattern, Figure 49, 1-1/2 in Nominal, FNPT, 200 CWP, CF8M Stainless Steel Body
**This item may be subject to a minimum order quantity.**
Specifications
Brand: Aloyco®
Weight: 3.1 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 200 lb
Softgoods Material: PTFE
Body Material: Stainless Steel
Inlet to Outlet Length: 4.72 in
Manufacturer Name: Crane ChemPharma Energy
Top to Inlet Center: 3.2 in
Trim Material: API Trim 10 (316SS)
Domestic/Import: Import
Country of Origin: CH
Standards and Approvals: MSS SP-42, ASME B16.34
Item Features
- Integral Seat
- Threaded Cap
- Y-Pattern
- API Trim 10 (316 SS)
- 203 CWP
