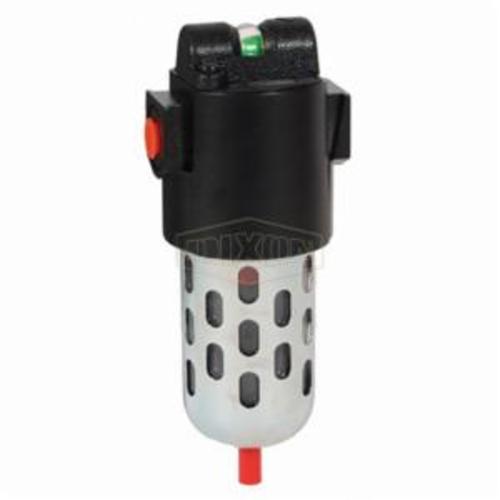

Wilkerson® by Dixon® M16-02A Compact Modular Coalescing Filter With Bowl Guard, 1/4 in NPT/BSPP-G Port, 150 psig Pressure Range, 37 scfm Flow Rate, 0.01 Micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN:252317
UPC:089109737697
MPN:M16-02A
Price:
$266.05 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Modular Coalescing Filter, Series: M16, 1/4 in NPT/BSPP-G, 37 scfm, 0.01 Micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, 7-1/2 in Overall Length, Zinc
Wilkerson® by Dixon® M16-02A Compact Modular Coalescing Filter With Bowl Guard, 1/4 in NPT/BSPP-G Port, 150 psig Pressure Range, 37 scfm Flow Rate, 0.01 Micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN:252317
MPN:M16-02A
UPC:089109737697
Price:
$266.05 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Modular Coalescing Filter, Series: M16, 1/4 in NPT/BSPP-G, 37 scfm, 0.01 Micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, 7-1/2 in Overall Length, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 2.08 lbs
Port Size: 1/4 in NPT/BSPP-G
Flow Rate: 37 scfm
Filter Rating: 0.01 micron
Pressure Range: 150 psig
Temperature Rating: 32 to 125 deg F
Bowl Material: Polycarbonate
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Overall Length: 7-1/2 in
Series: M16
Application: For removal of extremely fine oil mists, oil aerosols and microscopic particles
Warranty: Limited
Standards and Approvals: ISO Class 1
Item Features
- Automatic drain
- 0.01 micron type C element
- The differential pressure indicator changes from green to red with pressure loss
- A standard airline filter should be installed as a pre-filter when using a coalescing filter
- 5 oz bowl
