WATTS® 88005704

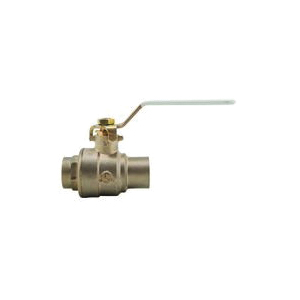

WATTS® 88005704 LFFBVS-3C-M1 2-Piece Ball Valve, 1-1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, FKM/PTFE Softgoods, Import

CBPN: 233186

UPC:098268163971

MPN:88005704

Price:
$53.19 / EA
Prop 65:

DESCRIPTION

WATTS® Ball Valve, 2-Piece, Series: LFFBVS-3C-M1, 1-1/2 in Nominal, Solder End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 1-1/2 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 4-1/4 in Inlet to Outlet Length, 3 in Top to Inlet Center, Copper Silicon Alloy Body, Brass/PTFE Trim, FKM/PTFE Softgoods, Brass, Import

Series LFFBV-3C 2-piece, full port, Lead Free ball valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, Chrome Plated Lead Free brass ball, copper silicon alloy brass adapter, and steel handle. The Series LFFBV-3C, LFFBVS-3C features Lead Free construction to comply with Lead Free installation requirements.

WATTS® 88005704 LFFBVS-3C-M1 2-Piece Ball Valve, 1-1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, FKM/PTFE Softgoods, Import

CBPN: 233186

MPN:88005704

UPC:098268163971

Price:
$53.19 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Ball Valve, 2-Piece, Series: LFFBVS-3C-M1, 1-1/2 in Nominal, Solder End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 1-1/2 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 4-1/4 in Inlet to Outlet Length, 3 in Top to Inlet Center, Copper Silicon Alloy Body, Brass/PTFE Trim, FKM/PTFE Softgoods, Brass, Import

Series LFFBV-3C 2-piece, full port, Lead Free ball valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, Chrome Plated Lead Free brass ball, copper silicon alloy brass adapter, and steel handle. The Series LFFBV-3C, LFFBVS-3C features Lead Free construction to comply with Lead Free installation requirements.

Specifications

BrandWATTS®
Weight2.175 lbs
Nominal Size1-1/2 in
End StyleSolder
Pressure Rating150 psi WSP/600 psi WOG
Body MaterialLead Free Brass
Port TypeFull
Softgoods MaterialFKM/PTFE
Actuator TypeLever Handle
Ball MaterialPolished Chrome Brass
FinishBrass
Inlet to Outlet Length4-1/4 in
Manufacturer NameWatts Water Technologies
MediaGas/Liquids
Orifice Size1-1/2 in
SeriesLFFBVS-3C-M1
Temperature Rating-40 to 400 deg F
Top to Inlet Center3 in
Trim MaterialBrass/PTFE
Type2-Piece
ApplicationCommercial and Industrial Applications
WarrantyLimited
Domestic/ImportImport
Country of OriginCN
Standards and ApprovalsFM Approved | MSS-SP-110 | NSF/ANSI 61/8 | UL Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Item Features

  • Lead Free forged copper silicon alloy body and adapter
  • Machined Chrome Plated lead free brass ball
  • Fluorocarbon elastomer stem O-ring prevents stem leaks
  • Virgin PTFE seat/thrust washer/stem packing
  • PTFE seal
  • Brass stem
