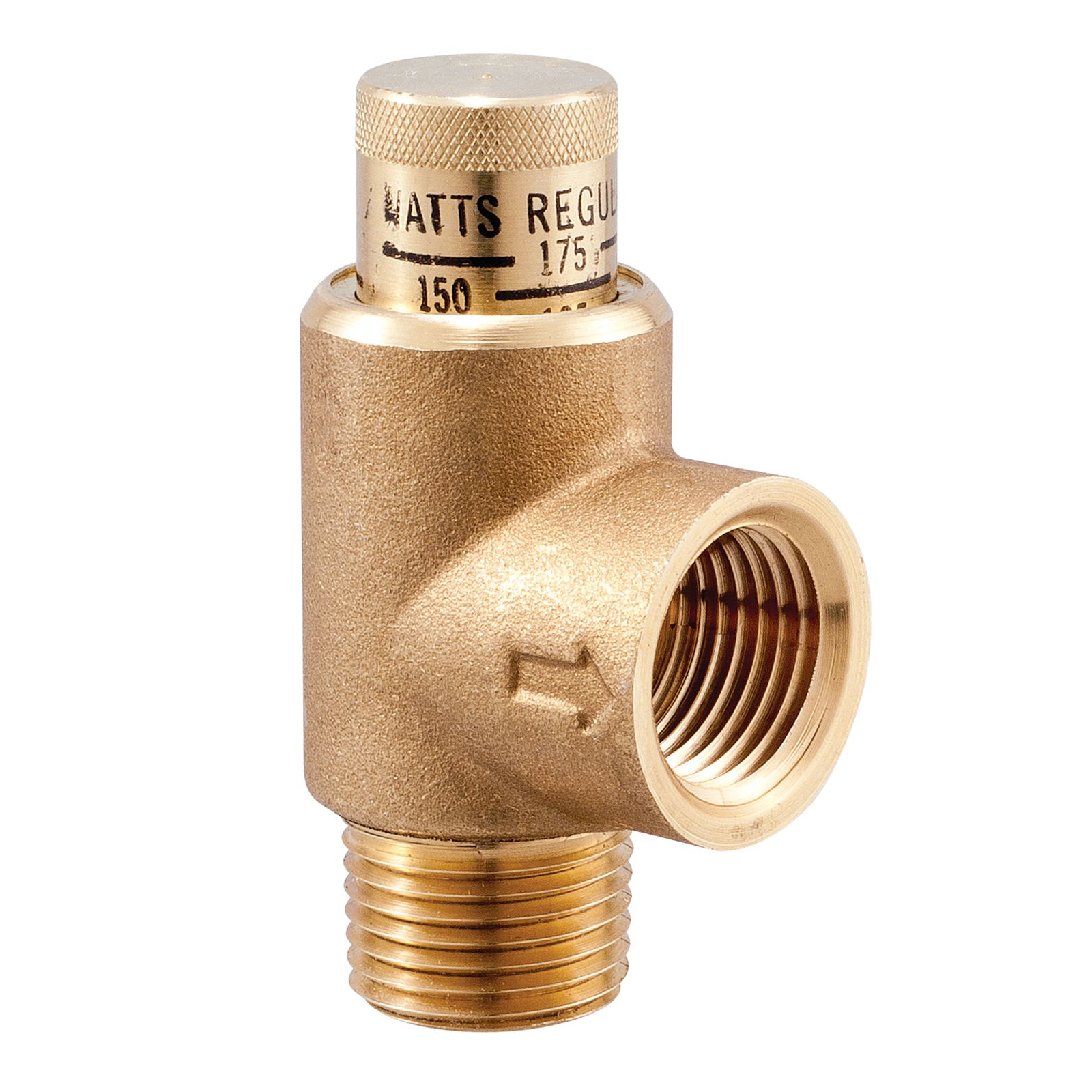

WATTS® 0556036 LF530-C Calibrated Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure Pressure, Brass Body, Domestic
CBPN: 219283
UPC:098268435207
MPN:0556036
DESCRIPTION
WATTS® Pressure Relief Valve, Calibrated, Series: LF530-C, 3/4 in Nominal, MNPT x FNPT, 150 psi Set Pressure, Brass Body, Buna-N® Disc, 1-5/8 in W x 3 in H, Domestic
Series LF530C Lead Free* Calibrated Pressure Relief Valves are used in commercial, residential and industrial applications to protect against excessive pressure in systems containing water, oil, or air. It consists of a Lead Free* brass body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, stainless steel spring, brass bonnet, Buna-N disc, and Buna-N O-ring. Series LF530C has a calibrated adjustment feature for setting the valve to the required relief pressure, and is ideal for by-pass thermal expansion pressure relief (not ASME approved). Maximum Pressure: 300psi (20.67 bar). Adjustable Pressure Ranges: Sizes 1/2, 3/4 in. - 50 to 175psi (3.45 to 12.06 bar), Size 3/4 in. - 100 to 300psi (6.89 to 20.67 bar).
WATTS® 0556036 LF530-C Calibrated Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Set Pressure Pressure, Brass Body, Domestic
CBPN: 219283
MPN:0556036
UPC:098268435207
DESCRIPTION
WATTS® Pressure Relief Valve, Calibrated, Series: LF530-C, 3/4 in Nominal, MNPT x FNPT, 150 psi Set Pressure, Brass Body, Buna-N® Disc, 1-5/8 in W x 3 in H, Domestic
Series LF530C Lead Free* Calibrated Pressure Relief Valves are used in commercial, residential and industrial applications to protect against excessive pressure in systems containing water, oil, or air. It consists of a Lead Free* brass body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, stainless steel spring, brass bonnet, Buna-N disc, and Buna-N O-ring. Series LF530C has a calibrated adjustment feature for setting the valve to the required relief pressure, and is ideal for by-pass thermal expansion pressure relief (not ASME approved). Maximum Pressure: 300psi (20.67 bar). Adjustable Pressure Ranges: Sizes 1/2, 3/4 in. - 50 to 175psi (3.45 to 12.06 bar), Size 3/4 in. - 100 to 300psi (6.89 to 20.67 bar).
Specifications
Standards
PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- All stainless steel adjustable spring
- Buna-N disc on machined body seat
- Stainless steel spring
- Calibrated adjustment feature
- Protects against buildup of excessive pressure
- For use in systems containing water, oil, and air
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Inquire with governing authorities for local installation requirements
- The WATTS® products shown on this page are small type relief valves
- Construction of these products does not meet the (ANSI Z21.22) nationally recognized applicable standard
