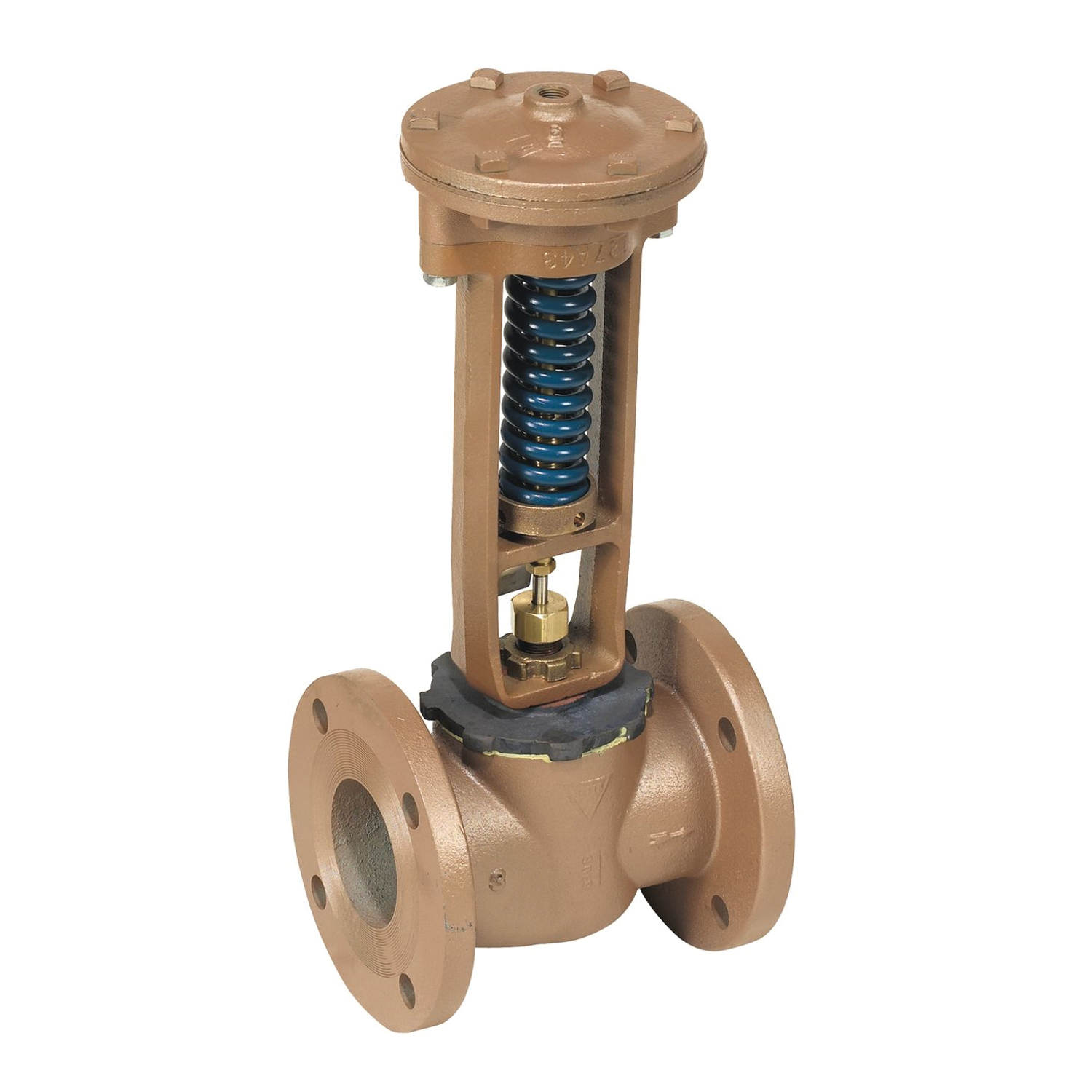

WATTS® 0125349 LFF127W High Capacity Adjustable Pressure Reducing Valve, 3 in Nominal, Flanged End Style, 175 psi Pressure, Iron Body, Domestic
CBPN:272199
UPC:098268861006
MPN:0125349
DESCRIPTION
WATTS® Pressure Reducing Valve, High Capacity Adjustable, Series: LFF127W, 3 in Nominal, Flanged, 175 psi, 160 deg F, Media: Water, 8 in Inlet to Outlet Length, 16-1/8 in Top to Inlet Center, Iron Body, Elastomer Disc/Thermal Plastic Seat Trim, Hot Dipped Galvanized, Domestic
This 3 in lead free high capacity water pressure reducing valve is used in commercial and industrial applications to reduce incoming water pressure for protection of plumbing system components and reduce water consumption. It features a triple coated corrosion preventative iron body, flanged inlet and outlet connections, replaceable disc, interchangeable 8 in diaphragm chamber, # 2 spring, replaceable stainless steel seat, and stainless steel stem. The maximum working pressure is 175 psi and the adjustable reduced pressure range is 25 to 100 psi . The temperature range is 33 to 160 deg F .
WATTS® 0125349 LFF127W High Capacity Adjustable Pressure Reducing Valve, 3 in Nominal, Flanged End Style, 175 psi Pressure, Iron Body, Domestic
CBPN:272199
MPN:0125349
UPC:098268861006
DESCRIPTION
WATTS® Pressure Reducing Valve, High Capacity Adjustable, Series: LFF127W, 3 in Nominal, Flanged, 175 psi, 160 deg F, Media: Water, 8 in Inlet to Outlet Length, 16-1/8 in Top to Inlet Center, Iron Body, Elastomer Disc/Thermal Plastic Seat Trim, Hot Dipped Galvanized, Domestic
This 3 in lead free high capacity water pressure reducing valve is used in commercial and industrial applications to reduce incoming water pressure for protection of plumbing system components and reduce water consumption. It features a triple coated corrosion preventative iron body, flanged inlet and outlet connections, replaceable disc, interchangeable 8 in diaphragm chamber, # 2 spring, replaceable stainless steel seat, and stainless steel stem. The maximum working pressure is 175 psi and the adjustable reduced pressure range is 25 to 100 psi . The temperature range is 33 to 160 deg F .
Specifications
Item Features
- Iron body triple coated with special corrosion preventative materials that is superior to hot dip galvanizing
- Remote control type regulator
- Replaceable stainless steel seat
- High temperature resisting 8 in diaphragm
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 25 to 100 psi adjustable reduced pressure
