Trerice 800B1501BA30 800B Dry Utility Pressure Gauge, 0 to 30 psi Pressure, 1/8 in MNPT Connection, 1-1/2 in Dia Dial, 1.6 % Accuracy
CBPN: 130373
MPN:800B1501BA30
Price:
$10.25 / EA
DESCRIPTION
Trerice Utility Pressure Gauge, Dry, Series: 800B, 0 to 30 psi, 1/8 in MNPT, 1-1/2 in Dial Diameter, 1.6 % Accuracy, 180 deg F, Center Back Mount, Steel Case, Black, 1.57 in Dia x 1.15 in D

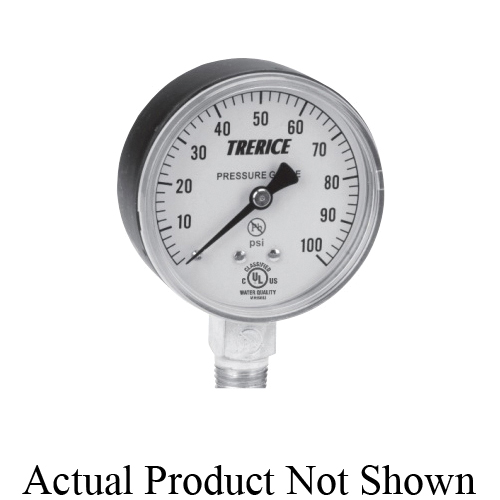

The Trerice 800B Utility Gauge is designed for general pressure indication requirements. This gauge provides reliable service at an economical cost. Wetted parts are bronze tube and Lead-Free (PBF) brass socket.
Trerice 800B1501BA30 800B Dry Utility Pressure Gauge, 0 to 30 psi Pressure, 1/8 in MNPT Connection, 1-1/2 in Dia Dial, 1.6 % Accuracy
CBPN: 130373
MPN:800B1501BA30
Price:
$10.25 / EA
DESCRIPTION
Trerice Utility Pressure Gauge, Dry, Series: 800B, 0 to 30 psi, 1/8 in MNPT, 1-1/2 in Dial Diameter, 1.6 % Accuracy, 180 deg F, Center Back Mount, Steel Case, Black, 1.57 in Dia x 1.15 in D
The Trerice 800B Utility Gauge is designed for general pressure indication requirements. This gauge provides reliable service at an economical cost. Wetted parts are bronze tube and Lead-Free (PBF) brass socket.
Specifications
Brand: Trerice
Weight: 0.2 lbs
Pressure Range: 0 to 30 psi
Dial Diameter: 1-1/2 in
Connection Size: 1/8 in MNPT
Mounting Type: Center Back
Accuracy: 1.6 %
Color: Black
Dimensions: 1.57 in Dia x 1.15 in D
Manufacturer Name: H.O. Trerice
Material: Steel Case
Series: 800B
Temperature Rating: 180 deg F
Type: Dry
Application: For variety of general industrial applications
Standards and Approvals: ASME B40.100 | cULus Water Quality MH59892 | NSF/ANSI 372/61
Item Features
- Plain, black finished pointer
- Acrylic window
- Drawn steel, black finished, stem-mounted flangeless case
- Aluminum/white background with black graduations and markings dial face
- Brass movement
