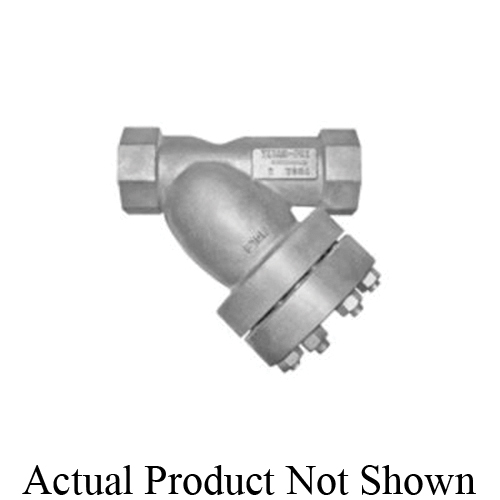

Titan® YS84S0075 YS84-SS Wye Strainer With Bolted Cover, 3/4 in Nominal, 4-1/4 in OAL, 1500#, Socket Weld Connection
CBPN: 250987
MPN:YS84S0075
Price:
$635.31 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS84-SS, 3/4 in Nominal, 4-1/4 in Overall Length, 1500#, Socket Weld Connection, Stainless Steel Body, CF8M Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS84S0075 YS84-SS Wye Strainer With Bolted Cover, 3/4 in Nominal, 4-1/4 in OAL, 1500#, Socket Weld Connection
CBPN: 250987
MPN:YS84S0075
Price:
$635.31 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS84-SS, 3/4 in Nominal, 4-1/4 in Overall Length, 1500#, Socket Weld Connection, Stainless Steel Body, CF8M Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 8 lbs
Nominal Size: 3/4 in
Body Material: Stainless Steel
Connection Type: Socket Weld
Pressure Class: 1500 lb
Overall Length: 4-1/4 in
Grade: CF8M
Manufacturer Name: Titan Flow Control
Series: YS84-SS
Application: Chemical, Food and Pharmaceutical Industries
Warranty: 1 Year
Standards and Approvals: ANSI Class 1500 | ASME/ANSI B16.11 | ASME/ANSI B16.34 | A-351 Grade CF8M Body
Item Features
- Rugged high quality design: Titan®'s YS83 is ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements, they are dual rated for ANSI class 600 and 1500
- Large straining capacity: With its large body and sizeable straining element, the YS83 provides excellent open area ratios that are typically 2-1/2 times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Encapsulated "CG" style gasket: The "CG" style cover gasket provides additional radial strength to prevent gasket blowout, it also acts as a compression stop
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
