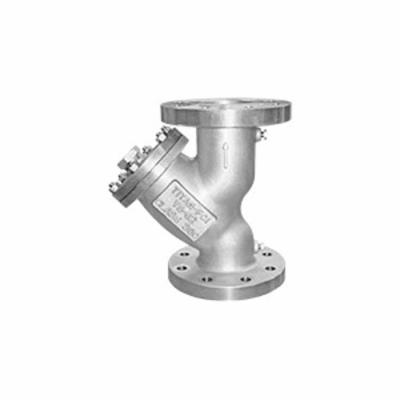

Titan® YS62S0150 YS62-SS Wye Strainer, 1-1/2 in Nominal, 10-1/4 in OAL, 300#, Raised Face Flanged Connection
CBPN:250775
MPN:YS62S0150
Price:
$1280.16 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS62-SS, 1-1/2 in Nominal, 10-1/4 in Overall Length, 300#, Raised Face Flanged, 1/2 in NPT Blow-Off, Stainless Steel Body, Grade CF8M
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS62S0150 YS62-SS Wye Strainer, 1-1/2 in Nominal, 10-1/4 in OAL, 300#, Raised Face Flanged Connection
CBPN:250775
MPN:YS62S0150
Price:
$1280.16 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS62-SS, 1-1/2 in Nominal, 10-1/4 in Overall Length, 300#, Raised Face Flanged, 1/2 in NPT Blow-Off, Stainless Steel Body, Grade CF8M
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 25 lbs
Nominal Size: 1-1/2 in
Body Material: Stainless Steel
Connection Type: Raised Face Flanged
Pressure Class: 300 lb
Overall Length: 10-1/4 in
Blow-Off Size: 1/2 in NPT
Grade: CF8M
Manufacturer Name: Titan Flow Control
Series: YS62-SS
Application: Chemical, Food and Pharmaceutical Industries
Standards and Approvals: ANSI Class 300 | ASME/ANSI B16.5 | ASME/ANSI B16.34 | ASTM A-351 Grade CF8M Body
Item Features
- New design with gauge taps: Titan®'s YS62 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2 in through 12 in
- These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary
- Large straining capacity: With its large body and sizeable straining element, the YS62 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
