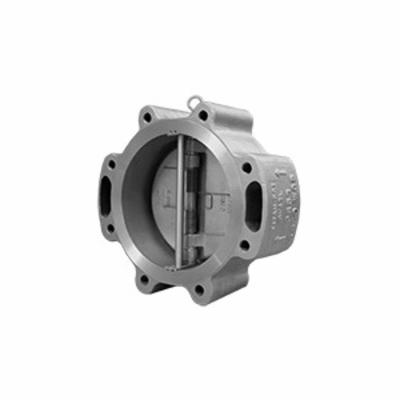

Titan® CV42LCSM0800 CV42L-CS Dual Disc Lug Check Valve, 8 in, 150 lb, Carbon Steel Body
CBPN:251277
MPN:CV42LCSM0800
Price:
$2578.06 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Check Valve, Dual Disc Lug, Series: CV42L-CS, 8 in Nominal, 285 psi WOG, 150 lb, 100 deg F, 5 in Inlet to Outlet Length, Carbon Steel Body, 316 Stainless Steel/Inconel X-750 Trim, Epoxy Painted, 10.91 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Titan® CV42LCSM0800 CV42L-CS Dual Disc Lug Check Valve, 8 in, 150 lb, Carbon Steel Body
CBPN:251277
MPN:CV42LCSM0800
Price:
$2578.06 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Check Valve, Dual Disc Lug, Series: CV42L-CS, 8 in Nominal, 285 psi WOG, 150 lb, 100 deg F, 5 in Inlet to Outlet Length, Carbon Steel Body, 316 Stainless Steel/Inconel X-750 Trim, Epoxy Painted, 10.91 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Specifications
Brand: Titan®
Weight: 95 lbs
Nominal Size: 8 in
End Style: Lug
Pressure Class: 150 lb
Body Material: Carbon Steel
Dimensions: 10.91 in OD
Finish: Epoxy Painted
Inlet to Outlet Length: 5 in
Manufacturer Name: Titan Flow Control
Pressure Rating: 285 psi WOG
Series: CV42L-CS
Temperature Rating: 100 deg F
Trim Material: 316 Stainless Steel/Inconel X-750
Type: Dual Disc Lug
Application: Water and Waste Water Treatment, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas
Standards and Approvals: ANSI/API 594 | ANSI/ASME 16.5 | API 598 | ASTM A216 Grade WCB Body
Item Features
- Minimal head loss: Contour of body provides a short and straight flow path that generates very little turbulence
- Additionally, the spring loaded disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
- Quick closure to reduce water hammer: Shut-off is achieved via the fully automatic, spring assisted discs that close near zero flow velocity
- The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
- Designed for long service life: The spring and discs are designed to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface
- Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components
- Fugitive emission design: The retainer-less body design eliminates potential leak paths to the environment so there are no body emissions
- Resilient and metal seats: Board, lapped sealing surface (metal) meets or exceeds API 598 test requirements, resilient seats (FKM/Buna-N) ensure a bubble tight seal
