Spirax Sarco 67940, S4A Separator, 8 in, ANSI 600 Flange, 600 psig, 153062 lb/hr Steam
CBPN: 200507
MPN:67940
Price:
$34808.18 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Separator, 8 in Nominal, ANSI 600 Flange, 600 psig, 153062 lb/hr Steam, -20 to 650 deg F, Fabricated Steel Body, 48.8 in H

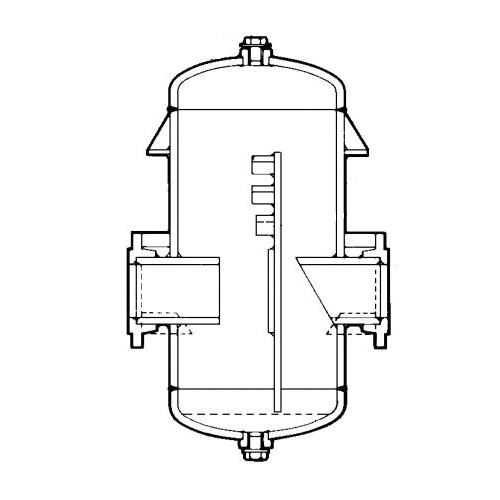

Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.
Spirax Sarco 67940, S4A Separator, 8 in, ANSI 600 Flange, 600 psig, 153062 lb/hr Steam
CBPN: 200507
MPN:67940
Price:
$34808.18 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Separator, 8 in Nominal, ANSI 600 Flange, 600 psig, 153062 lb/hr Steam, -20 to 650 deg F, Fabricated Steel Body, 48.8 in H
Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.
Specifications
Brand: Spirax Sarco
Weight: 972 lbs
Nominal Size: 8 in
End Style: ANSI 600 Flange
Pressure Rating: 600 psig
Steam Capacity: 153062 lb/hr
Body Material: Fabricated Steel
Dimensions: 48.8 in H
Manufacturer Name: Spirax-Sarco Inc
Series: S4A
Temperature Rating: -20 to 650 deg F
Application: On steam mains, Compressed air lines, Steam turbines, Heat transfer processes, Meter protection, Steam distribution systems, Protection of equipment requiring dry saturated steam, Removal of moisture from steam, Air or gas systems
Domestic/Import: Domestic
Country of Origin: US
Item Features
- 600 psig ASME code stamped
- Maximum allowable working pressure: 600 psig
- Maximum allowable working temperature: -20 to 650 deg F
