Spirax Sarco 65610340, SRV463 Direct Operated Pressure Regulator, 3/4 in, ANSI 150 Flange, 12 to 36 psig, 374 deg F Operating
CBPN: 239109
MPN:65610340
Price:
$14872.51 / EA
DESCRIPTION

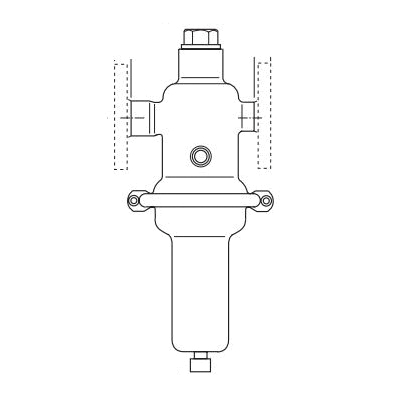

Spirax Sarco Pressure Regulator, Direct Operated, 3/4 in Nominal, ANSI 150 Flange, 12 to 36 psig, 374 deg F Operating, Stainless Steel Body, PTFE O-Ring Seal
Types SRV461/463 Direct Acting Pressure Reducing Valve with nonrising adjustment screw, O-ring soft seal on valve plug for tight ANSI Class VI shutoff, and 316 Ti stainless steel construction for wetted parts.
Spirax Sarco 65610340, SRV463 Direct Operated Pressure Regulator, 3/4 in, ANSI 150 Flange, 12 to 36 psig, 374 deg F Operating
CBPN: 239109
MPN:65610340
Price:
$14872.51 / EA
DESCRIPTION
Spirax Sarco Pressure Regulator, Direct Operated, 3/4 in Nominal, ANSI 150 Flange, 12 to 36 psig, 374 deg F Operating, Stainless Steel Body, PTFE O-Ring Seal
Types SRV461/463 Direct Acting Pressure Reducing Valve with nonrising adjustment screw, O-ring soft seal on valve plug for tight ANSI Class VI shutoff, and 316 Ti stainless steel construction for wetted parts.
Specifications
Brand: Spirax Sarco
Weight: 7.9 lbs
Nominal Size: 3/4 in
End Style: ANSI 150 Flange
Pressure Rating: 12 to 36 psig
Temperature Rating: 374 deg F Operating
Body Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Series: SRV463
Softgoods Material: PTFE O-Ring Seal
Type: Direct Operated
Item Features
- Maximum allowable pressure: 220 psig
- Maximum allowable temperature: 374 deg F
- 5.9 Cv
- 12 to 36 psig shell design condition
- 174 psig operating
