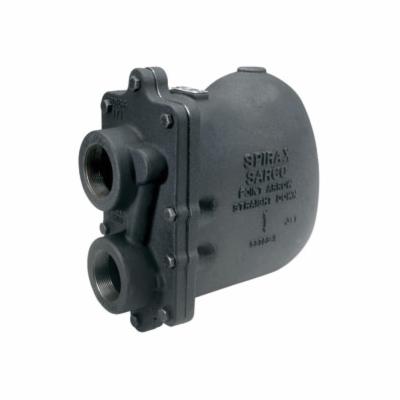

Spirax Sarco 58495, FT-200 Float and Thermostatic Steam Trap, 1-1/2 in, FNPT, 450 deg F, 200 psi, Cast Iron
CBPN: 99815
MPN:58495
Price:
$2033.68 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 1-1/2 in Nominal, FNPT, 10-3/4 in Length, 200 psi, Cast Iron, 450 deg F, 9.1 in H x 5.75 in W
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature, while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent.
Spirax Sarco 58495, FT-200 Float and Thermostatic Steam Trap, 1-1/2 in, FNPT, 450 deg F, 200 psi, Cast Iron
CBPN: 99815
MPN:58495
Price:
$2033.68 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 1-1/2 in Nominal, FNPT, 10-3/4 in Length, 200 psi, Cast Iron, 450 deg F, 9.1 in H x 5.75 in W
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature, while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent.
Specifications
Brand: Spirax Sarco
Weight: 30 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Max Operating Pressure: 200 psig
Max Allowable Pressure: 200 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 200 psig
Material: Cast Iron
Dimensions: 9.1 in H x 5.75 in W
Length: 10-3/4 in
Manufacturer Name: Spirax-Sarco Inc
Series: FT200
Application: All process equipment, particularly when controlled by modulating temperature control valves, also for unit heaters, air heating coils, heat exchangers and steam main drip stations
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 200 psig at 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 125 psig Maximum allowable temperature
- Parallel piping configuration
- Stainless steel internals
