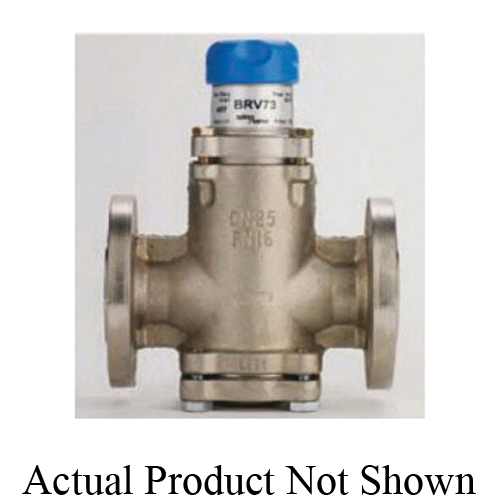

Spirax Sarco 2103397, BRV73 Direct Operated Pressure Regulator, 1-1/4 in, ANSI 150 Flange, 2 to 25 psig, 184 deg C Operating
CBPN: 222378
MPN:2103397
Price:
$2645.19 / EA
DESCRIPTION
Spirax Sarco Pressure Regulator, Direct Operated, 1-1/4 in Nominal, ANSI 150 Flange, 2 to 25 psig, 184 deg C Operating, Ductile Iron Body, Media: Steam/Compressed Air and Other Gases, Virgin PTFE Washer/EPDM O-Ring, 8.6 in H
The BRV71/73 is extremely compact in size and maintains the added benefit of enhanced resistance to pressure and load fluctuations. BRV valves are designed for use with steam, compressed air and other gases and are ideal for point of use installations, offering a cost effective alternative to more sophisticated valves.
Spirax Sarco 2103397, BRV73 Direct Operated Pressure Regulator, 1-1/4 in, ANSI 150 Flange, 2 to 25 psig, 184 deg C Operating
CBPN: 222378
MPN:2103397
Price:
$2645.19 / EA
DESCRIPTION
Spirax Sarco Pressure Regulator, Direct Operated, 1-1/4 in Nominal, ANSI 150 Flange, 2 to 25 psig, 184 deg C Operating, Ductile Iron Body, Media: Steam/Compressed Air and Other Gases, Virgin PTFE Washer/EPDM O-Ring, 8.6 in H
The BRV71/73 is extremely compact in size and maintains the added benefit of enhanced resistance to pressure and load fluctuations. BRV valves are designed for use with steam, compressed air and other gases and are ideal for point of use installations, offering a cost effective alternative to more sophisticated valves.
Specifications
Brand: Spirax Sarco
Weight: 16 lbs
Nominal Size: 1-1/4 in
End Style: ANSI 150 Flange
Pressure Rating: 2 to 25 psig
Temperature Rating: 184 deg C Operating
Body Material: Ductile Iron
Dimensions: 8.6 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Steam/Compressed Air and Other Gases
Series: BRV73
Softgoods Material: Virgin PTFE Washer/EPDM O-Ring
Type: Direct Operated
Standards and Approvals: ISO 9001
Item Features
- PN16 Body design conditions
- Maximum allowable pressure: 16 barg
- Maximum allowable temperature: -10 to 184 deg C
- 12.8 Cv
- Gray color coded spring
