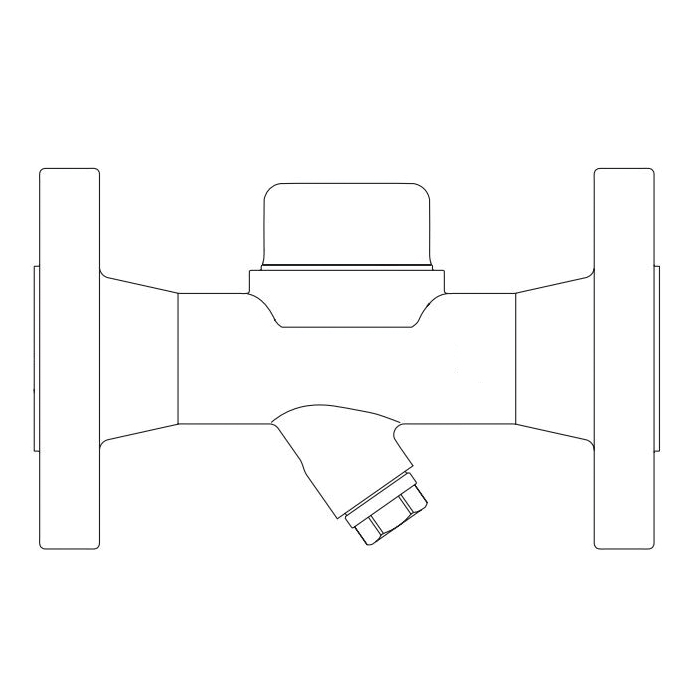

Spirax Sarco 1870652 TDC46M Horizontal Thermodynamic Steam Trap, 1/2 in Nominal, ANSI 300 Flanged End Style, Carbon Steel
CBPN:271198
MPN:1870652
Price:
$1440.88 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, Horizontal, Series: TDC46M, 1/2 in Nominal, Flanged End Style, 150 mm Length, 1.5 to 43 bar g Pressure, Carbon Steel, 0 to 425 deg C
The TDC46M is a carbon steel, Thermodynamic Steam Trap that has been specifically designed for low capacity applications up to 46 bar g (where pipe connections permit). As standard the unit is available with either screwed, socket weld or flanged connections.
Spirax Sarco 1870652 TDC46M Horizontal Thermodynamic Steam Trap, 1/2 in Nominal, ANSI 300 Flanged End Style, Carbon Steel
CBPN:271198
MPN:1870652
Price:
$1440.88 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, Horizontal, Series: TDC46M, 1/2 in Nominal, Flanged End Style, 150 mm Length, 1.5 to 43 bar g Pressure, Carbon Steel, 0 to 425 deg C
The TDC46M is a carbon steel, Thermodynamic Steam Trap that has been specifically designed for low capacity applications up to 46 bar g (where pipe connections permit). As standard the unit is available with either screwed, socket weld or flanged connections.
Specifications
Brand: Spirax Sarco
Weight: 6.5 lbs
Nominal Size: 1/2 in
End Style: ANSI 300 Flange
Material: Carbon Steel
Max Operating Pressure: 623 psig
Max Allowable Pressure: 740 psig/up to 100 deg F
Max Allowable Temperature: 797 deg F/up to 417 psig
Length: 150 mm
Manufacturer Name: Spirax-Sarco Inc
Series: TDC46M
Type: Horizontal
Standards and Approvals: ANSI Class 300 | ASTM A216 Grade WCB | EN 10204 3.1 | European Pressure Equipment Directive 97/23/EC
