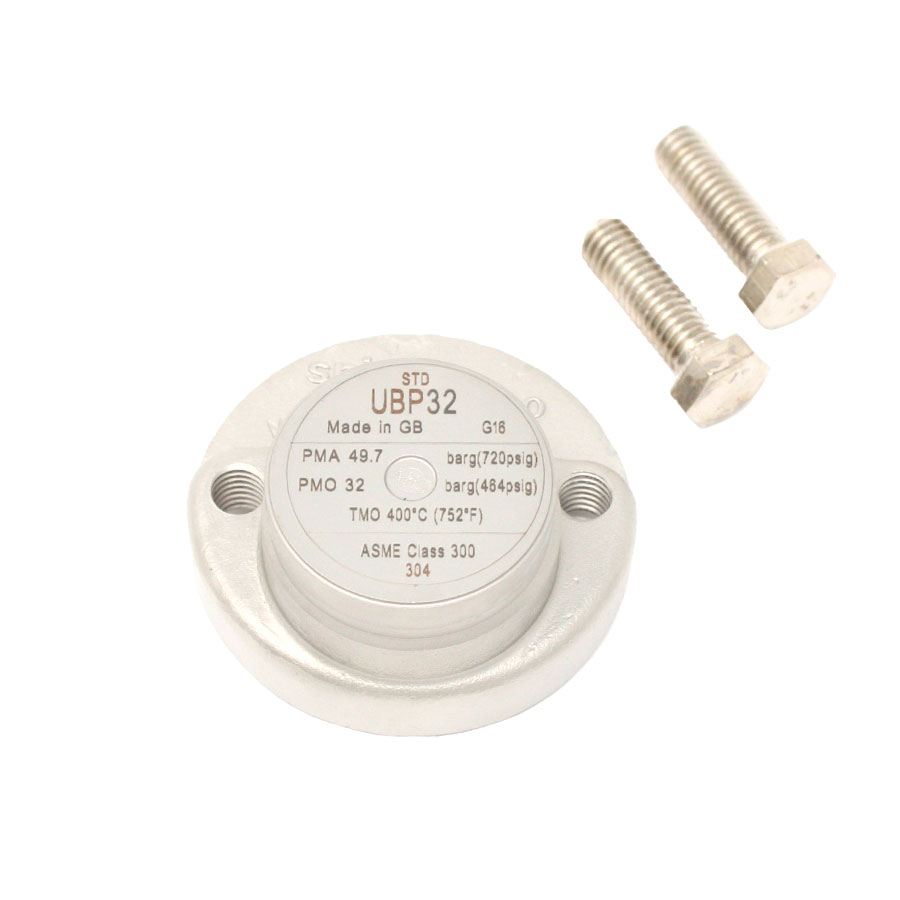

Spirax Sarco 1270900, UBP32 Universal Balanced Pressure Thermostatic Steam Trap With NTS (Near to Steam) Capsule, 572 deg F Operating, 464 psig Operating, Stainless Steel
CBPN:71649
MPN:1270900
Price:
$562.89 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Universal, 464 psig Operating, Stainless Steel, 572 deg F Operating
Spirax Sarco 1270900, UBP32 Universal Balanced Pressure Thermostatic Steam Trap With NTS (Near to Steam) Capsule, 572 deg F Operating, 464 psig Operating, Stainless Steel
CBPN:71649
MPN:1270900
Price:
$562.89 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Universal, 464 psig Operating, Stainless Steel, 572 deg F Operating
Specifications
Brand: Spirax Sarco
Weight: 2.4 lbs
End Style: Universal Connector
Max Operating Pressure: 464 psig
Max Allowable Pressure: 720 psig/up to 100 deg F
Max Allowable Temperature: 752 deg F/up to 400 psig
Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Series: UBP32
Type: Universal
Application: Steam tracing systems and steam main drip stations, Kitchen and hospital equipment, Steam coils and Steam radiators
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 Grade CF8 Body
Item Features
- Tamper proof body
- Maximum operating temperature: 572 deg F at 450 psig
- Maximum allowable pressure: 720 psig at up to 100 deg F
- Maximum allowable temperature: 752 deg F at 0 to 400 psig
- As standard, the trap is supplied with filling for 22 deg F below saturation capsule filling
- 22 deg F below saturated steam temperature
- Horizontal or vertical installation
- 7 deg F
- Adjust automatically to varying steam pressures
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
