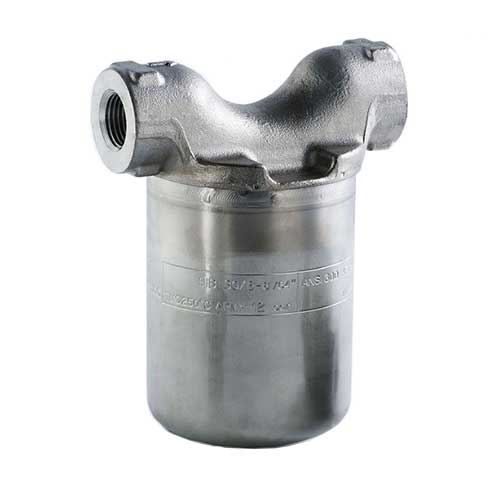

Spirax Sarco 1101490, SIB30/7 Sealed Inverted Bucket Steam Trap, 3/4 in, NPT, 400 deg C, 123 psig, Stainless Steel
CBPN: 209293
MPN:1101490
Price:
$682.57 / EA
DESCRIPTION
Spirax Sarco Sealed Inverted Bucket Steam Trap, 3/4 in Nominal, NPT, 150 mm Length, 123 psig, Stainless Steel, 400 deg C, 143 mm H
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic. Condensate and non-condensable are discharged close to steam temperature. The SIB30 is sealed for tamper-proof operation.
Spirax Sarco 1101490, SIB30/7 Sealed Inverted Bucket Steam Trap, 3/4 in, NPT, 400 deg C, 123 psig, Stainless Steel
CBPN: 209293
MPN:1101490
Price:
$682.57 / EA
DESCRIPTION
Spirax Sarco Sealed Inverted Bucket Steam Trap, 3/4 in Nominal, NPT, 150 mm Length, 123 psig, Stainless Steel, 400 deg C, 143 mm H
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic. Condensate and non-condensable are discharged close to steam temperature. The SIB30 is sealed for tamper-proof operation.
Specifications
Brand: Spirax Sarco
Weight: 3.3 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 123 psig
Max Allowable Pressure: 720 psig/up to 100 deg F
Max Allowable Temperature: 752 deg F/up to 406 psig
Dimensions: 143 mm H
Length: 150 mm
Manufacturer Name: Spirax-Sarco Inc
Series: SIB30
Standards and Approvals: ASTM A314 Grade 304 Body
Item Features
- PN50 body design conditions
- Maximum allowable pressure: 50 barg
- Maximum allowable temperature: 400 deg C
- 30 barg maximum operating pressure for saturated steam service
- Maximum cold hydraulic test pressure: 75 barg
- Tamper-proof
- In-line horizontal piping configuration
