Spears® S1580-10F

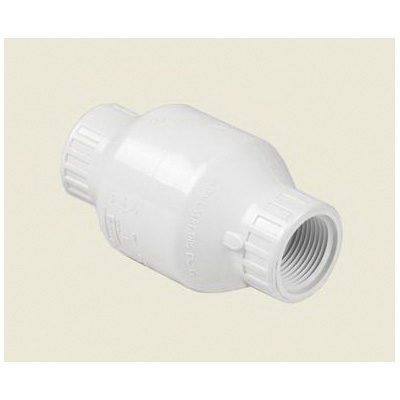

Spears® S1580-10F Utility Spring Check Valve, 1 in, FNPT, PVC Body, Domestic

CBPN: 272846

UPC:054211988862

MPN:S1580-10F

Price:
$66.45 / EA

DESCRIPTION

Spears® Utility Spring Check Valve, 1 in Nominal, FNPT, 150/75 psi, 140 deg F, 4-9/16 in Inlet to Outlet Length, PVC Body, EPDM Trim, White, Domestic

Spears® utility swing check and spring assisted utility spring check valves offer a compact, high performance check valve for Landscape and Irrigation, Pool and Spa, Aquaculture, OEM and many general purpose applications. These maintenance free sealed units feature long-life EPDM elastomer seats with weighted disc for full-flow with minimal restriction and positive shutoff. Spring assisted "Spring Check" model incorporates a positive-pressure spring to assist in valve closing without slamming. Produced from PVC White or PVC Clear material with Socket, Threaded or SR Threaded end connectors. Available in IPS sizes 1/2 in through 8 in for swing check valves and 1/2 in through 4 in for spring check valves.

Spears® S1580-10F Utility Spring Check Valve, 1 in, FNPT, PVC Body, Domestic

CBPN: 272846

MPN:S1580-10F

UPC:054211988862

Price:
$66.45 / EA

Spears logo

DESCRIPTION

Spears® Utility Spring Check Valve, 1 in Nominal, FNPT, 150/75 psi, 140 deg F, 4-9/16 in Inlet to Outlet Length, PVC Body, EPDM Trim, White, Domestic

Spears® utility swing check and spring assisted utility spring check valves offer a compact, high performance check valve for Landscape and Irrigation, Pool and Spa, Aquaculture, OEM and many general purpose applications. These maintenance free sealed units feature long-life EPDM elastomer seats with weighted disc for full-flow with minimal restriction and positive shutoff. Spring assisted "Spring Check" model incorporates a positive-pressure spring to assist in valve closing without slamming. Produced from PVC White or PVC Clear material with Socket, Threaded or SR Threaded end connectors. Available in IPS sizes 1/2 in through 8 in for swing check valves and 1/2 in through 4 in for spring check valves.

Specifications

BrandSpears®
Weight0.36 lbs
Nominal Size1 in
End StyleFNPT
Body MaterialPVC
ColorWhite
Inlet to Outlet Length4-9/16 in
Manufacturer NameSpears Manufacturing
Pressure Rating150/75 psi
Temperature Rating140 deg F
Trim MaterialEPDM
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM D1784 | NSF Approved

Item Features

  • Chemical and corrosion resistant PVC white or high visibility PVC clear construction
  • No metal parts on swing check - stainless steel spring on spring check
  • Maintenance free sealed unit in a compact space saving design
  • Engineered for maximum flow, quick response and positive shutoff
  • Spring assisted spring check model option for positive closing
  • Suitable for either horizontal or vertical Up-flow installations and vacuum service
  • Silicone free assembly
  • 150 psi at 73 deg F full flow (open), 75 psi back pressure (Closed)
  • Long life high grade EPDM seat with weighted disc
