Spears® 721311G-040C

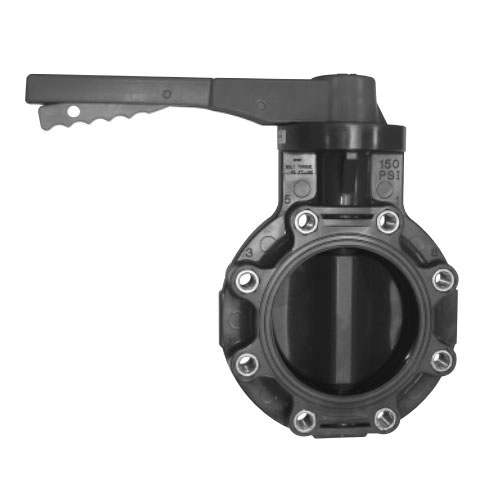

Spears® 721311G-040C Lug Insert Butterfly Valve, 4 in Nominal, 150 lb, Molded CPVC Body, Buna-N Softgoods, Domestic

CBPN: 261373

UPC:054211923627

MPN:721311G-040C

Price:
$2122.63 / EA

DESCRIPTION

Spears® Butterfly Valve, Lug Insert, 4 in Nominal, 150 lb, Lever Handle Actuator, 8-1/2 in Top to Inlet Center, Molded CPVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, Buna-N, Gray, 9 in Dia, Domestic

Spears® patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal off. Ideally suited for flow control or throttling, this high performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications. Available in IPS sizes 1-1/2 in - 12 in standard or true lug (factory installed lugs) style.

Spears® 721311G-040C Lug Insert Butterfly Valve, 4 in Nominal, 150 lb, Molded CPVC Body, Buna-N Softgoods, Domestic

CBPN: 261373

MPN:721311G-040C

UPC:054211923627

Price:
$2122.63 / EA

Spears logo

DESCRIPTION

Spears® Butterfly Valve, Lug Insert, 4 in Nominal, 150 lb, Lever Handle Actuator, 8-1/2 in Top to Inlet Center, Molded CPVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, Buna-N, Gray, 9 in Dia, Domestic

Spears® patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal off. Ideally suited for flow control or throttling, this high performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications. Available in IPS sizes 1-1/2 in - 12 in standard or true lug (factory installed lugs) style.

Specifications

BrandSpears®
Weight10.04 lbs
Nominal Size4 in
TypeLug Insert
Body MaterialMolded CPVC
Softgoods MaterialBuna-N
Actuator TypeLever Handle
Pressure Class150 lb
ColorGray
Dimensions9 in Dia
Manufacturer NameSpears Manufacturing
Stem & Pin Material316L Stainless Steel (Stem)
Top to Inlet Center8-1/2 in
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsANSI/ASME B16.5 Bolt Pattern

Item Features

  • Special off-set disc lifts quickly from seat to reduce wear and reduce operating torque
  • Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
  • Interlocking body and seat prevents wash-out or blow-out
  • Fully isolated solid type 316L stainless steel stem
  • Reversible high impact polypropylene lever handle with 7-Position stops and built-in lockout (standard handle on 1-1/2 - 8 in valves, not available on 10 in and larger valves)
  • High efficiency gear operator with cast aluminum housing, polypropylene handwheel and built-In position indicator
  • Lug insert style valve has factory installed stainless steel 316 or zinc plated steel lug inserts
  • Standard valve accepts field-installable lug inserts set option
  • True lug design has factory installed zinc plated or stainless steel 316 lugs and is specially designed for connection to either side of valve
  • Pressure rated to 150 psi at 73 deg F including dead-end service
  • Valves with EPDM seals and seats are NSF® certified for potable water use
  • 316 stainless steel lug inserts
  • Buna-N O-ring
