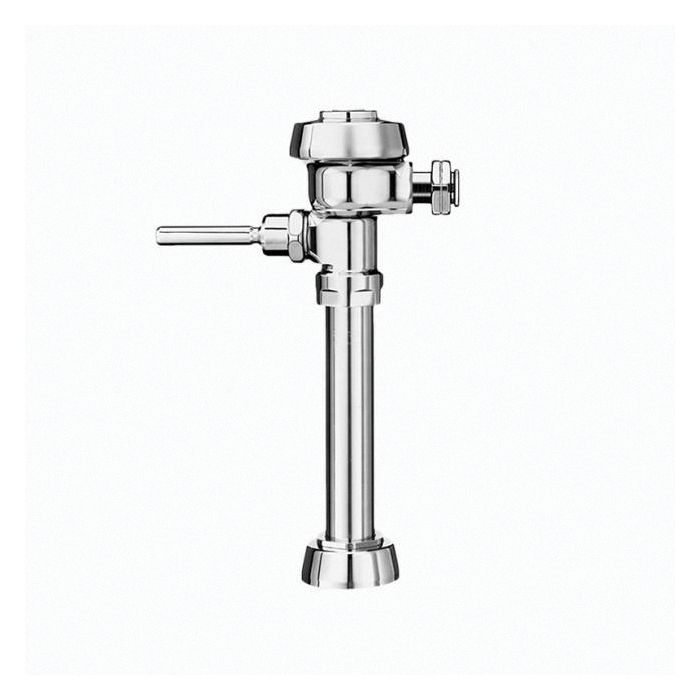

Sloan® Royal® 3910243 112-3.5-XD Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 222622
UPC:671254134799
MPN:3910243
Price:
$203.99 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 112-3.5-XD, Water Closet Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Exposed Water Closet Flushometer with Adjustable Ground Joint Tailpiece, for floor mounted or wall hung top spud bowls.
Sloan® Royal® 3910243 112-3.5-XD Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 222622
MPN:3910243
UPC:671254134799
Price:
$203.99 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 112-3.5-XD, Water Closet Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Exposed Water Closet Flushometer with Adjustable Ground Joint Tailpiece, for floor mounted or wall hung top spud bowls.
Specifications
Brand: Sloan®
Weight: 5.95 lbs
Flush Rate: 3.5 gpf
Inlet Size: 1 in IPS
Spud Coupling: 1-1/2 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Water Closet
Handle Type: Non-Hold Open Oscillating
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Series: 112, 112-3.5-XD
Type: Single-Flush
Valve Design: Diaphragm
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | ASTM Specified | ASSE1037 Valve | BAA Compliant | UPC Listed | ANSI/ASME A112.19.2
Item Features
- Various water-saving flush volumes for urinals and water closets
- Water conservation is aided by the ADA Compliant, non-hold-open handle, which prevents fixture from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Vandal-resistant stop cap prevents tampering
- PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
