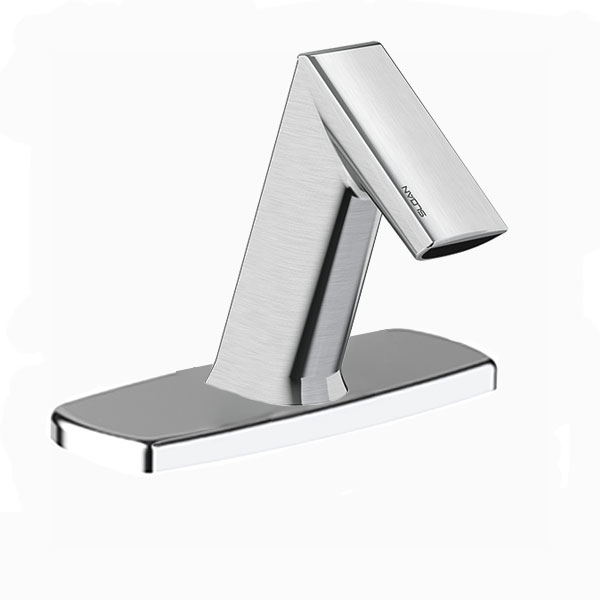

Sloan BASYS EFX-250 Sensor Faucet

Sloan® BASYS® 3324058 EFX-250 Sink Faucet, Commercial, 0.5 gpm Flow Rate, 3-11/16 in H Spout, 1 Faucet Holes, Polished Chrome, Function: Touchless

CBPN: 157377

UPC:671254395268

MPN:3324058

Price:
$1024.35 / EA

DESCRIPTION

Sloan® BASYS® Sink Faucet, Series: EFX-250, 0.5 gpm, Mid Spout, 6 in Spout Reach, 3-11/16 in Spout Height, 1 Faucet Holes, 3/8 in, Compression, Function: Touchless, 1-1/2 in Maximum Deck Thickness, Deck Mount, Metering Valve/Cartridge, 6-15/32 in H, Die Cast Metal, Polished Chrome, Import, Commercial

Sloan® BASYS® 3324058 EFX-250 Sink Faucet, Commercial, 0.5 gpm Flow Rate, 3-11/16 in H Spout, 1 Faucet Holes, Polished Chrome, Function: Touchless

CBPN: 157377

MPN:3324058

UPC:671254395268

Price:
$1024.35 / EA

Sloan logo

DESCRIPTION

Sloan® BASYS® Sink Faucet, Series: EFX-250, 0.5 gpm, Mid Spout, 6 in Spout Reach, 3-11/16 in Spout Height, 1 Faucet Holes, 3/8 in, Compression, Function: Touchless, 1-1/2 in Maximum Deck Thickness, Deck Mount, Metering Valve/Cartridge, 6-15/32 in H, Die Cast Metal, Polished Chrome, Import, Commercial

Specifications

BrandSloan®
Weight5 lbs
CollectionBASYS®
TypeSensor Activated Touchless
Commercial/ResidentialCommercial
Flow Rate0.5 gpm
Spout Height3-11/16 in
Center Distance4 in
Finish/ColorPolished Chrome
Connection Size3/8 in
Connection TypeCompression
Dimensions6-15/32 in H
FunctionTouchless
Manufacturer NameSloan Valve Company
MaterialDie Cast Metal
Maximum Deck Thickness1-1/2 in
Mounting TypeDeck
Number of Faucet Holes1
Power SourceBattery
SeriesEFX-250
Spout Reach6 in
Spout TypeMid
Spray PatternMulti-Laminar
Valve TypeIntegral Spout Mixer
Valve/Cartridge TypeMetering
IncludesMounting Hardware
Warranty3 Years Limited
Domestic/ImportImport
Country of OriginCH
Standards and ApprovalsADA Compliant | ASME A112.18.1 Compliant | CEC Compliant | CalGreen Compliant | cUPC Certified | IPC Listed | NSF Approved | NPC Canada

Item Features

  • All serviceable components above deck
  • All wetted components to be stainless steel, engineered thermoplastic, EPDM and copper or copper alloy
  • Solenoid housed in removable carrier that includes supply strainer, serviceable from above deck
  • All electronics sealed to IP-67
  • Vandal resistant spray insert, key housed inside faucet body
  • Line purge mode, eliminates stagnant water
  • Flexible high pressure supply hoses 3/8 in compression connections
  • Above deck individual diagnostic indicators for battery life, solenoid condition and power up mode
  • Gold plated electrical contacts
  • Bi-stable magnetic solenoid valve
  • Double infrared sensor has automatic setting feature and microprocessor
  • Adjustable time-outs
  • Faucet can be configured to add solar and LCD display
  • ISM mechanical mixing, integral to spout
  • 4 in trim plate
  • Integrated side mounted mechanical mixing valve
  • Pedestal base
  • Hand washing faucet for pre-tempered or hot and cold water operation
