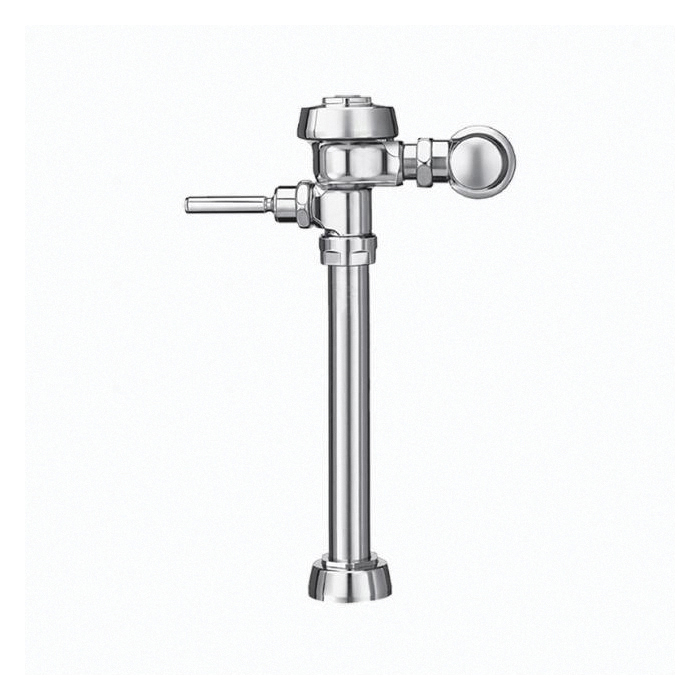

Sloan® Royal® 3010200 113-3.5 Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:84104
UPC:671254018631
MPN:3010200
Price:
$218.41 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 113-3.5, Water Closet Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 16 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Sloan® Royal® 3010200 113-3.5 Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:84104
MPN:3010200
UPC:671254018631
Price:
$218.41 / EA
DESCRIPTION
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 113-3.5, Water Closet Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 16 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Specifications
Brand: Sloan®
Weight: 7.16 lbs
Flush Rate: 3.5 gpf
Inlet Size: 1 in IPS
Spud Coupling: 1-1/2 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Water Closet
Handle Type: Non-Hold Open Oscillating
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 16 in
Series: 113, 113-3.5
Type: Single-Flush
Valve Design: Diaphragm
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | BAA Compliant | UPC Listed | Valve Shall be in Compliance with the Applicable Sections of ASSE 1037 | ANSI/ASME A112.19.2
Item Features
- Flush volumes start as low as 1.28 gpf/4.8 lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
