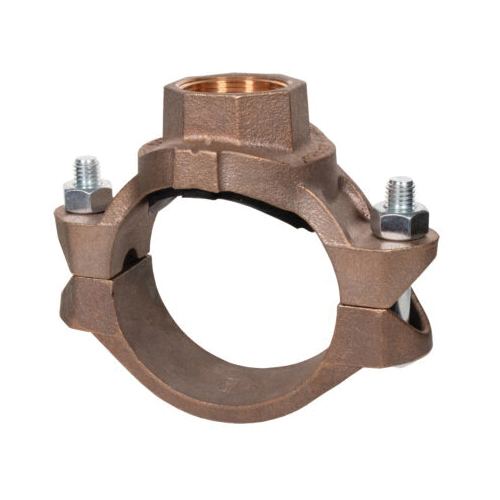

Gruvlok® Mechanical Tee, Series: FIG 6045, 3 x 1 in Nominal, FNPT Connection, 1-1/2 to 1-5/8 in Diameter Hole, 300 psi Pressure, -40 to 230 deg F, 1/2 x 3 in Bolt, Carbon Steel Bolt, Gasket, 6-5/8 in L x 3-11/16 in W Dimensions

The figure 6045 CTS mechanical tee provides for a branch connection in K, L or M copper tube. Gruvlok® CTS mechanical tees and crosses have a NPT female pipe thread branch. CTS mechanical tee connections are available in sizes 2-1 /2 x 3 /4 in through 4 x 1-1/2 in, allowing versatility in piping design. Gruvlok® CTS mechanical tees and crosses provide a quick and easy outlet at any location along copper tube. A hole drilled or cut in the tube to receive the locating collar of the CTS mechanical tee is all that is required. The full, smooth outlet area provides for optimum flow characteristics. The CTS mechanical tee housing is specially engineered to fit to the tube OD and the CTS mechanical tee gasket provides a leak tight reliable seal in both positive pressure and vacuum conditions. The maximum working pressure for all sizes is 300 psi when assembled on K or L copper tube.
