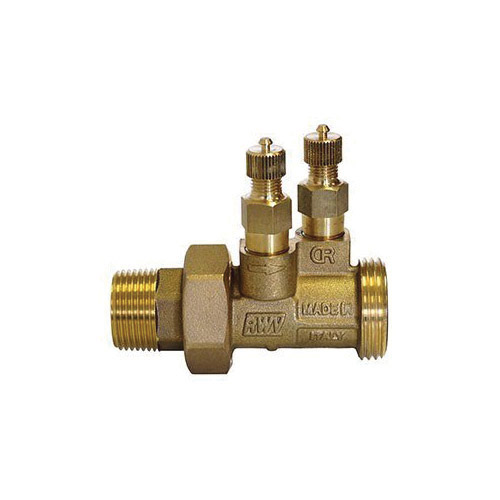

Gruvlok® 0763102043 FIG ABV-9907 Automatic Balancing Valve With Kit, 3/4 in Nominal, Solder End Style, 300 psi Working Pressure, 0.32 to 3.17 gpm Flow Rate, Brass Body, Import
CBPN:296501
UPC:662428520388
MPN:0763102043
Price:
$369.52 / EA
DESCRIPTION
Gruvlok® Automatic Balancing Valve, Series: FIG ABV-9907, 3/4 in Nominal, Solder Joint, 300 psi Working, 300 lb WOG, 160 deg F, 0.32 to 3.17 gpm, Brass Body, Stainless Steel Trim, Perox, 3.96 in L, Import
Straight DZR Brass Automatic Balancing Valve with Threaded F/F (ASME B1.20.1-NPT) or solder joint (ASME B16.22) union ends. Wide range of flows available. 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Gruvlok® 0763102043 FIG ABV-9907 Automatic Balancing Valve With Kit, 3/4 in Nominal, Solder End Style, 300 psi Working Pressure, 0.32 to 3.17 gpm Flow Rate, Brass Body, Import
CBPN:296501
MPN:0763102043
UPC:662428520388
Price:
$369.52 / EA
DESCRIPTION
Gruvlok® Automatic Balancing Valve, Series: FIG ABV-9907, 3/4 in Nominal, Solder Joint, 300 psi Working, 300 lb WOG, 160 deg F, 0.32 to 3.17 gpm, Brass Body, Stainless Steel Trim, Perox, 3.96 in L, Import
Straight DZR Brass Automatic Balancing Valve with Threaded F/F (ASME B1.20.1-NPT) or solder joint (ASME B16.22) union ends. Wide range of flows available. 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Specifications
Brand: Gruvlok®
Weight: 1.23 lbs
Nominal Size: 3/4 in
End Style: Solder
Pressure Class: 300 lb WOG
Flow Rate: 0.32 to 3.17 gpm
Body Material: Brass
Dimensions: 3.96 in L
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 300 psi Working
Series: FIG ABV-9907
Softgoods Material: EPDM Perox
Temperature Rating: 160 deg F
Trim Material: Stainless Steel
Includes: Brass Union Nut/Union, EPDM Perox Union O-Ring/ Cartridge O-Ring, Stainless Steel Spring/Shaped Opening/Cartridge Spring and ZR Brass Test Point or Plug
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: AISI 302 Cartridge Spring/Spring | ASME B16.22 Solder Joint | ASTM B283 C37700 Union Nut | UNS C35330 Union/Body/Cartridge Body/Test Point or Plug
Item Features
- Fixed orifice DZR brass double regulating valve. Intended for HVAC use.
