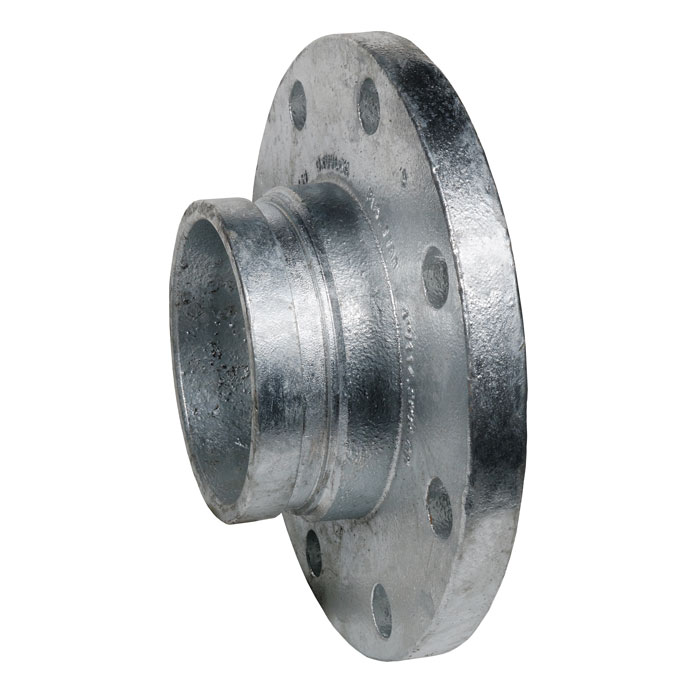

Gruvlok® 0390202448 FIG 7788 Flange Adapter, 3 in Nominal, Flanged x Grooved End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Galvanized, Domestic
CBPN:284277
UPC:690291062278
MPN:0390202448
DESCRIPTION
Gruvlok® Adapter, Series: FIG 7788, 3 in Nominal, Flanged x Grooved, 2-1/2 in Thickness, 125/150 lb, 300 psi, Ductile Iron, Galvanized, 3-1/2 in OD, Domestic
The Gruvlok® Fig. 7788 Flange Adapter allows for direct connection of Class 125 or Class 150 flanged components to a grooved piping system. The Gruvlok® Flange Adapter provides an alternative method of connecting to flanged components than the traditional Fig. 7012 Gruvlok® Flange. The Gruvlok® Flange Adapter provides a raised serrated face flange connection with a shorter overall length than Anvil's Fig. 7084 Flange x Groove Nipple.
Gruvlok® 0390202448 FIG 7788 Flange Adapter, 3 in Nominal, Flanged x Grooved End Style, 300 psi Pressure, 125/150 lb, Ductile Iron, Galvanized, Domestic
CBPN:284277
MPN:0390202448
UPC:690291062278
DESCRIPTION
Gruvlok® Adapter, Series: FIG 7788, 3 in Nominal, Flanged x Grooved, 2-1/2 in Thickness, 125/150 lb, 300 psi, Ductile Iron, Galvanized, 3-1/2 in OD, Domestic
The Gruvlok® Fig. 7788 Flange Adapter allows for direct connection of Class 125 or Class 150 flanged components to a grooved piping system. The Gruvlok® Flange Adapter provides an alternative method of connecting to flanged components than the traditional Fig. 7012 Gruvlok® Flange. The Gruvlok® Flange Adapter provides a raised serrated face flange connection with a shorter overall length than Anvil's Fig. 7084 Flange x Groove Nipple.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
