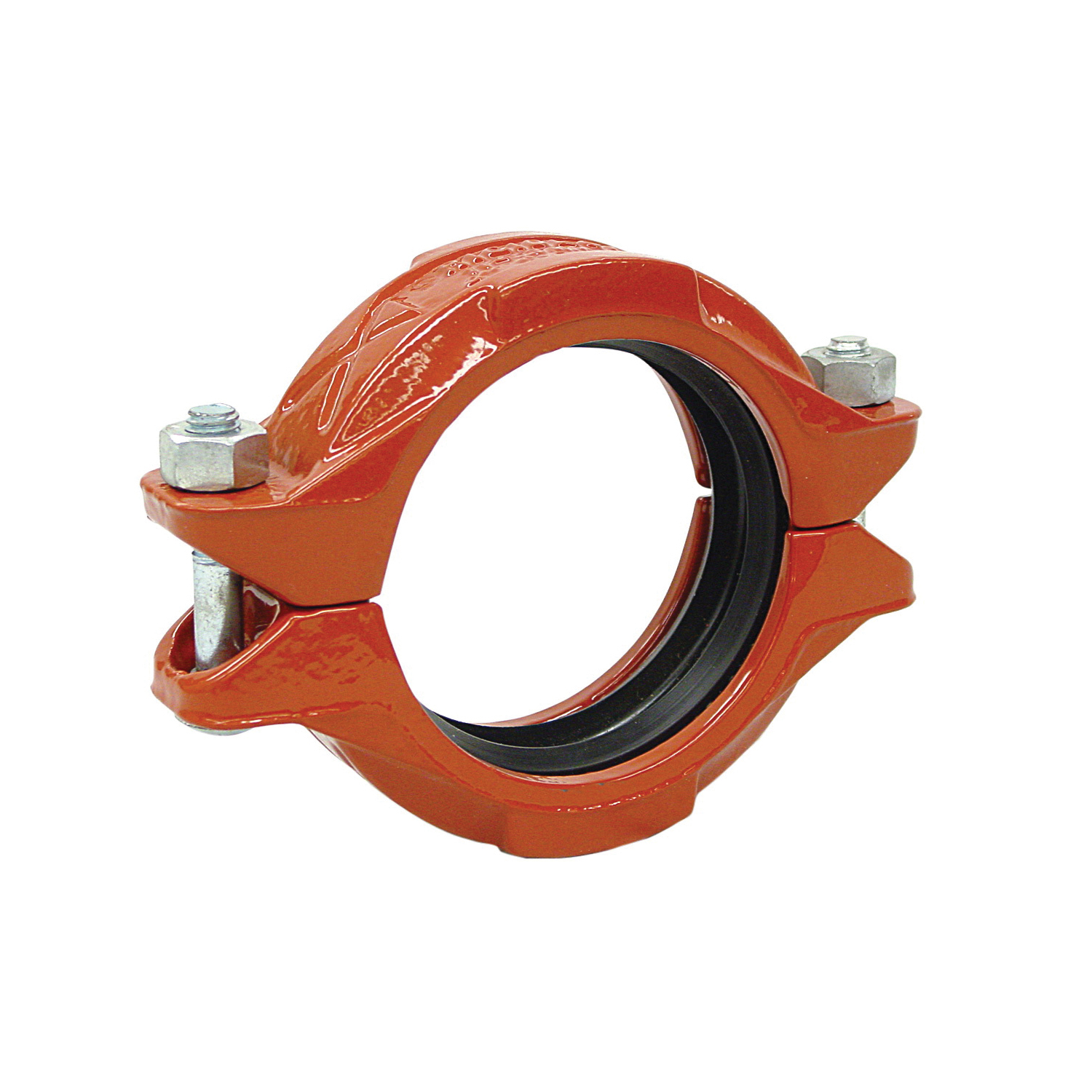

Gruvlok® Rigidlok® 0390014009 FIG 7401-2 Rigid Coupling With Flush Gap EPDM Gasket, 18 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Import
CBPN: 295584
UPC:690291269905
MPN:0390014009
Price:
$641.71 / EA
DESCRIPTION
Gruvlok® Rigid Coupling, Series: FIG 7401-2, Fitting/Connector Type: Coupling, 18 in Nominal, Grooved, 24-1/4 in Length, 350 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 230 deg F, 18 in OD x 3-1/8 in D, Import
Gruvlok® introduces new 2-piece large diameter standard groove couplings in both rigid and flexible styles.
Gruvlok® Rigidlok® 0390014009 FIG 7401-2 Rigid Coupling With Flush Gap EPDM Gasket, 18 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Import
CBPN: 295584
MPN:0390014009
UPC:690291269905
Price:
$641.71 / EA
DESCRIPTION
Gruvlok® Rigid Coupling, Series: FIG 7401-2, Fitting/Connector Type: Coupling, 18 in Nominal, Grooved, 24-1/4 in Length, 350 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 230 deg F, 18 in OD x 3-1/8 in D, Import
Gruvlok® introduces new 2-piece large diameter standard groove couplings in both rigid and flexible styles.
Specifications
Brand: Gruvlok®
Weight: 61.57 lbs
Fitting/Connector Type: Coupling
Nominal Size: 18 in
End Style: Grooved
Finish: Rust Inhibiting Orange Painted
Material: Ductile Iron
Gasket Material: Flush Gap EPDM
Color: Orange
Dimensions: 18 in OD x 3-1/8 in D
Length: 24-1/4 in
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 350 psi
Series: FIG 7401-2
Temperature Rating: -40 to 230 deg F
Includes: (2) 1 x 5-1/2 in Zinc Electroplated Bolts, Zinc Electroplated Heavy Hexagonal Nuts and Grade E EPDM Flush Gap Green Gasket
Warranty: 1 Year
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: ASTM A536 Grade 65-45-12 Housing | AWWA C-606 | ASTM D2000 Gasket | ASTM A563 Grade A Nuts | SAE J429 Grade 5 Bolts
Item Features
- Internationally Manufactured. Coupling installation is fast and easy, remove only one nut and swing the housing over the gasket and into the grooves.
- No special grooves or grooving tools needed
- No special fittings needed
- No special valves needed
- Up to 23% less weight than competitive models
- Recommended for water service, diluted acids, alkalies solutions, oil-free air and many chemical services
- Not for use in petroleum application
- Uses standard grooves
- Pressures to 350 psi on cut or roll grooved pipe with a wall thickness of 0.250 in or greater
