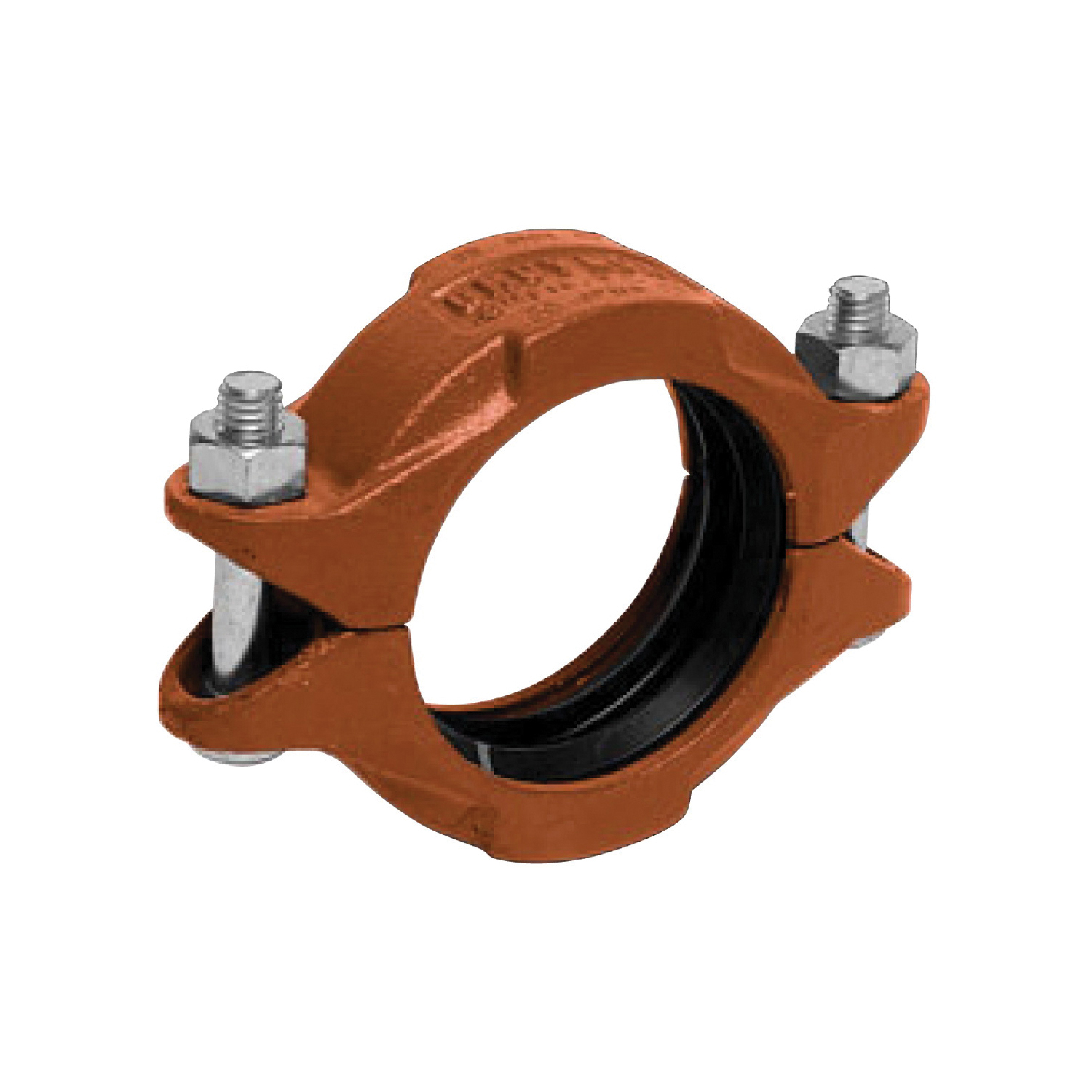

Gruvlok® 0390000248 FIG 7000 Lightweight Flexible Coupling With EPDM Gasket, 1-1/2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN:81163
UPC:690291104541
MPN:0390000248
DESCRIPTION
Gruvlok® Pipe Coupling, Flexible, Series: FIG 7000, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, Grooved, 1-3/4 in Thickness, 4-5/8 in Length, 600 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 250 deg F, 1.9 in OD, Domestic
The Fig. 7000 Lightweight Flexible Coupling is designed for applications where system flexibility is desired.The Fig. 7000 Coupling is approximately 30% lighter in weight than the Fig. 7001 Coupling, and allows for working pressure ratings up to 600 psi (41.4 bar). The Figure 7000 Lightweight Flexible Coupling is intended for use in several applications.
Gruvlok® 0390000248 FIG 7000 Lightweight Flexible Coupling With EPDM Gasket, 1-1/2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted, Domestic
CBPN:81163
MPN:0390000248
UPC:690291104541
DESCRIPTION
Gruvlok® Pipe Coupling, Flexible, Series: FIG 7000, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, Grooved, 1-3/4 in Thickness, 4-5/8 in Length, 600 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 250 deg F, 1.9 in OD, Domestic
The Fig. 7000 Lightweight Flexible Coupling is designed for applications where system flexibility is desired.The Fig. 7000 Coupling is approximately 30% lighter in weight than the Fig. 7001 Coupling, and allows for working pressure ratings up to 600 psi (41.4 bar). The Figure 7000 Lightweight Flexible Coupling is intended for use in several applications.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- Lightweight
