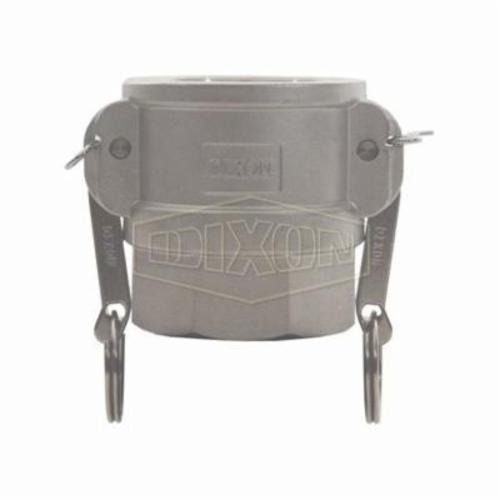

Dixon® G75-D-SS Global Type D Cam and Groove Coupler, 3/4 in Nominal, Female Coupler x FNPT End Style, 316 Stainless Steel, Domestic
CBPN:194191
MPN:G75-D-SS
Price:
$36.32 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type D, Series: Global, Coupling Fitting/Connector, 3/4 in Nominal, Female Coupler x FNPT End Style, 2-1/32 in Length, 250 psi Pressure, 316 Stainless Steel, Domestic
Dixon® G75-D-SS Global Type D Cam and Groove Coupler, 3/4 in Nominal, Female Coupler x FNPT End Style, 316 Stainless Steel, Domestic
CBPN:194191
MPN:G75-D-SS
Price:
$36.32 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type D, Series: Global, Coupling Fitting/Connector, 3/4 in Nominal, Female Coupler x FNPT End Style, 2-1/32 in Length, 250 psi Pressure, 316 Stainless Steel, Domestic
Specifications
Brand: Dixon®
Weight: 0.5 lbs
Fitting/Connector Type: Coupling
Type: Type D
Nominal Size: 3/4 in
End Style: Female Coupler x FNPT
Material: 316 Stainless Steel
Length: 2-1/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 250 psi
Series: Global
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: Designed to interchange with all products produced to A-A-59326D
Item Features
- 4-1/32 in open x 2-13/32 in closed across cam arm
- 316 investment cast stainless steel
- Stainless steel handle
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
