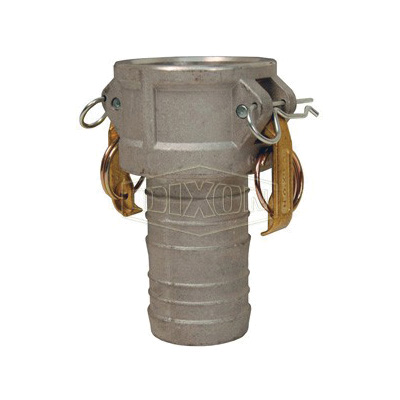

Dixon® G400-C-AL Type-C Cam and Groove Coupler, 4 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Import
CBPN:183517
MPN:G400-C-AL
Price:
$61.74 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 4 in Nominal, Female Coupler x Hose Shank End Style, 6-9/32 in Length, 100 psi Pressure, Aluminum, 6-21/32 in H Dimensions, Import
Dixon® G400-C-AL Type-C Cam and Groove Coupler, 4 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Import
CBPN:183517
MPN:G400-C-AL
Price:
$61.74 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 4 in Nominal, Female Coupler x Hose Shank End Style, 6-9/32 in Length, 100 psi Pressure, Aluminum, 6-21/32 in H Dimensions, Import
Specifications
Brand: Dixon®
Weight: 2.76 lbs
Fitting/Connector Type: Coupling
Type: Type C
Nominal Size: 4 in
End Style: Female Coupler x Hose Shank
Material: Aluminum
Dimensions: 6-21/32 in H
Length: 6-9/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 100 psi
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Item Features
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Brass handle
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 100 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
