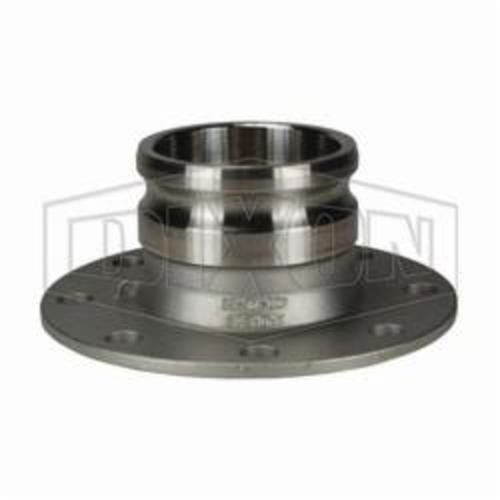

Dixon® 400-AL-SS Cam and Groove Adapter, 4 in, Adapter x Class 150 Flange, 316 Stainless Steel, Domestic
CBPN:125315
MPN:400-AL-SS
Price:
$443.56 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Fitting/Connector Type: Adapter, 4 in Nominal Size, Adapter x Class 150 Flange, 7/16 in Thickness, 3-53/64 in Length, 100 psi, 316 Stainless Steel, Domestic
Dixon® 400-AL-SS Cam and Groove Adapter, 4 in, Adapter x Class 150 Flange, 316 Stainless Steel, Domestic
CBPN:125315
MPN:400-AL-SS
Price:
$443.56 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Fitting/Connector Type: Adapter, 4 in Nominal Size, Adapter x Class 150 Flange, 7/16 in Thickness, 3-53/64 in Length, 100 psi, 316 Stainless Steel, Domestic
Specifications
Brand: Dixon®
Weight: 9.6 lbs
Fitting/Connector Type: Adapter
Nominal Size: 4 in
End Style: Adapter x Class 150 Flange
Material: 316 Stainless Steel
Length: 3-53/64 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 100 psi
Thickness: 7/16 in
Application: Designed for use with liquids
Domestic/Import: Domestic
Country of Origin: US
Item Features
- Aluminum and unplated iron flanges are flat faced
- Stainless steel flanges are raised face
- Flanges are designed to mate with 150 lb flange
- Flanges have the same bolt hole pattern as an ANSI 150 lb. flange, the thickness may vary
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
