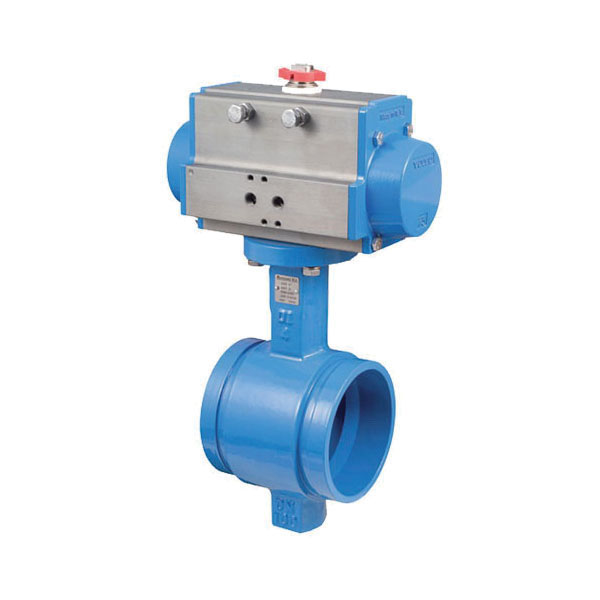

Bonomi North America Butterfly Valve Package, 2-Way Rubber Lined Direct Mount, Series: 700, 8 in Nominal, Grooved, -30 to 250 deg F, Pneumatic Spring Return Actuator, 5-1/4 in Inlet to Outlet Length, Ductile Iron Body, Ductile Iron + NBR/EPDM Disc, EPDM, Epoxy Powder Coated, 17.13 in L x 26.1 in H, Import

The Bonomi SR700E series pneumatic actuated package features the 700E ISO 5211 direct mount epoxy coated, ductile iron, EPDM coated disc, grooved end ball valve. The E700B pneumatic package is the same except utilizing a Buna-N coated disc. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
