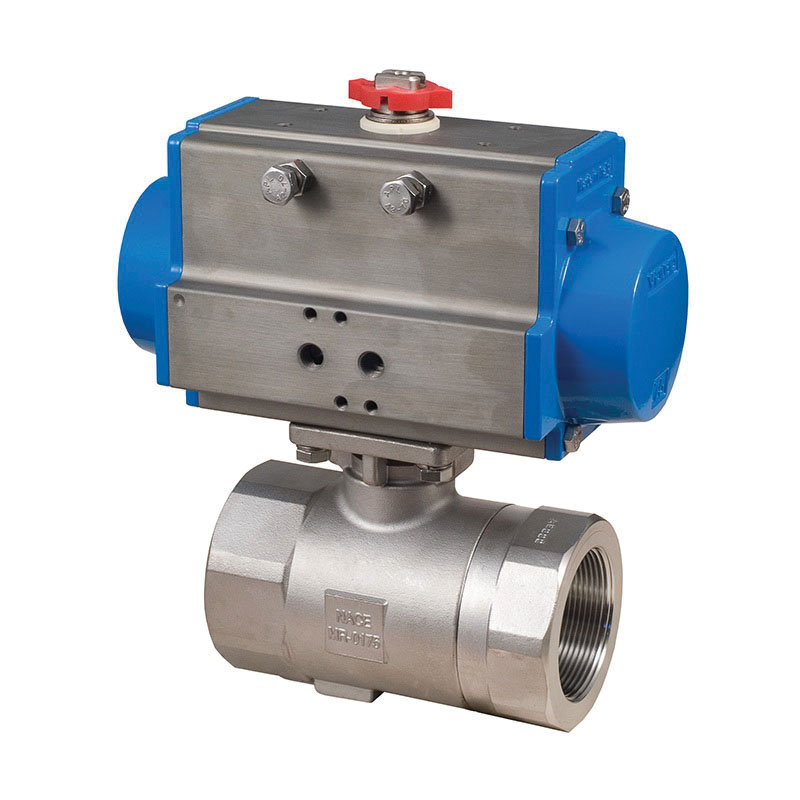

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 3100, 1 in Nominal, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 0.87 in Orifice, Pneumatic Spring Return Actuator, Stainless Steel Ball, 3.58 in Inlet to Outlet Length, 8.82 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/Delrin/Vinyl Trim, FKM/PTFE, 9.47 in L x 4.17 in W x 7.82 in H, Import

The Bonomi 8P3102 series pneumatic actuated package features a 3000 psi investment cast ASTM A351-CF8M stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and a grounded ball and stem. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
