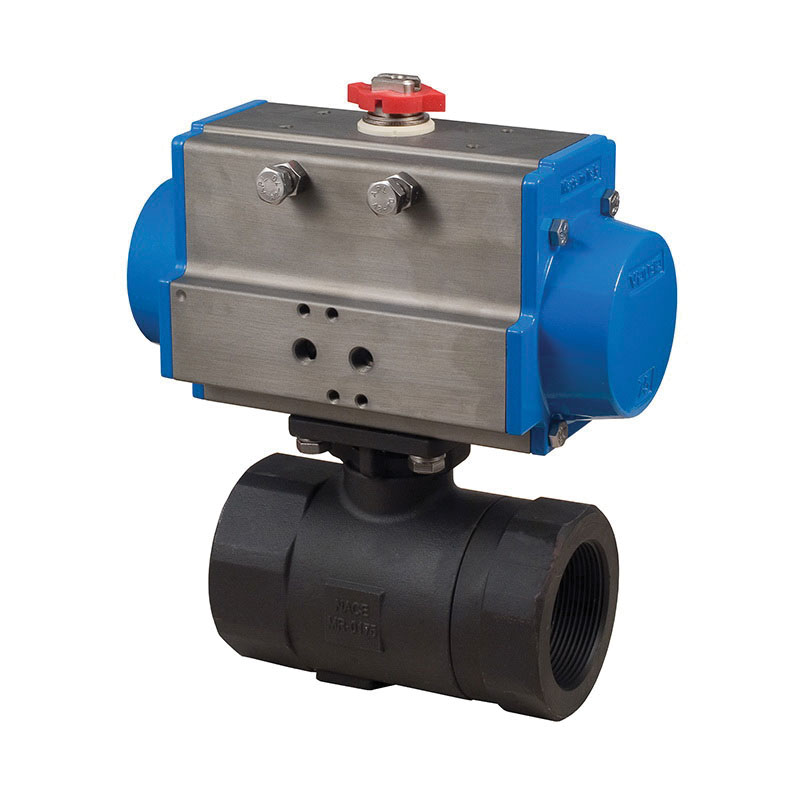

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 3000, 1/2 in Nominal, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 1/2 in Orifice, Double Acting Pneumatic Actuator, Stainless Steel Ball, 2.95 in Inlet to Outlet Length, 6.11 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/Delrin/Vinyl Trim, FKM/PTFE, 5.55 in L x 2.8 in W x 5.61 in H, Import

The Bonomi 8P3000 series pneumatic actuated package features a 3000 psi an investment cast ASTM A216-WCB carbon steel ball valve with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and a grounded ball and stem. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
