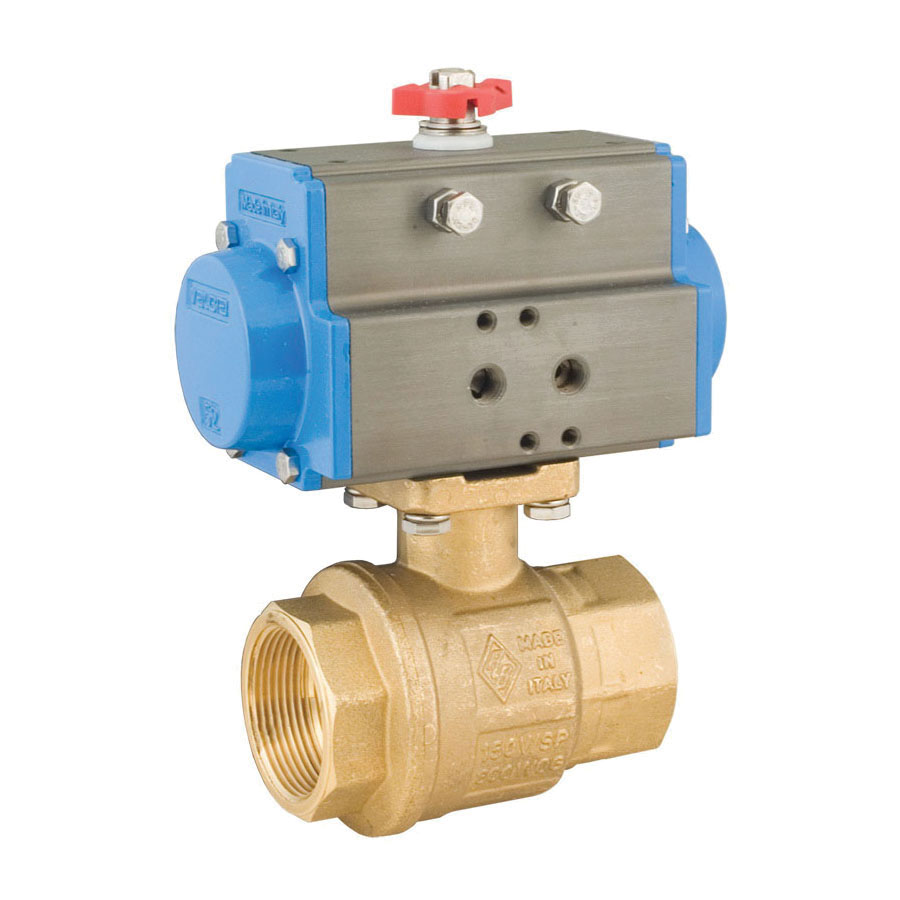

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 250NLF, 2 in Nominal, FNPT, 600 psi WOG, -4 to 366 deg F, Full Port, Media: Steam, 2.76 in Orifice, Pneumatic Spring Return Actuator, Brass Ball, 4.8 in Inlet to Outlet Length, 7.32 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, EPDM/FKM/PTFE, 6.46 in L x 3.17 in W x 9.13 in H, Import

The 8P0082LF series feature the 250NLF lead free, forged brass, full port, ISO direct mount ball valve with a TEA plated ball and stem. The 250NLF also features O-ring back energized seats for touch sealing both up and downstream. In addition, there is a double O-ring stem seal for high cyclic conditions. This series is a low torque design. The Valbia pneumatic actuator comes with a hard-anodized aluminum body, and powder coated end caps. In addition, all Valbia pneumatic actuators are standardly furnished with elevated temperature seals to 302 deg F. The patented side loaded limit stops never enter the piston chamber eliminating extra possible leak paths.
