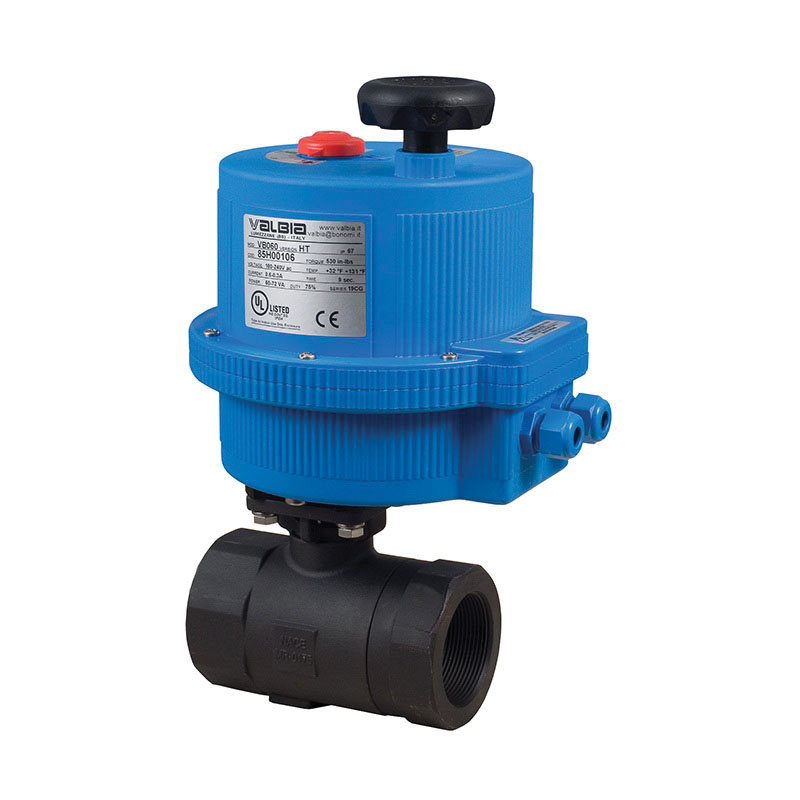

Bonomi 8E3000-003-1-1/4 2-Piece 2-Way Direct Mount Electric Actuated Ball Valve With Bracket, 1-1/4 in, FNPT, Carbon Steel Body, 100 to 240 VAC, Import
CBPN: 228575
MPN:8E3000-003-1-1/4
DESCRIPTION
Bonomi North America Ball Valve Package, 2-Piece 2-Way Direct Mount, Series: 700LL, 1-1/4 in Nominal, 100 to 240 VAC, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 1.14 in Orifice, On/Off Electric Actuator, 4.33 in Inlet to Outlet Length, 10.78 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/Delrin Trim, FKM/PTFE, 8.43 in L x 7.28 in W x 12.68 in H, Import
The Bonomi 8E3000 series electric actuated package features a 3000 psi stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and an investment cast CF8M body. The Valbia electric VB series actuator fits directly over the 3000 series square stem and ISO 5211 pad. The actuator also is standardly furnished with dual voltages, two extra limit switches, torque limiter, extended manual override, 75% duty cycle motor, in a IP67, NEMA 4, 4X techno polymer housing.
Bonomi 8E3000-003-1-1/4 2-Piece 2-Way Direct Mount Electric Actuated Ball Valve With Bracket, 1-1/4 in, FNPT, Carbon Steel Body, 100 to 240 VAC, Import
CBPN: 228575
MPN:8E3000-003-1-1/4
DESCRIPTION
Bonomi North America Ball Valve Package, 2-Piece 2-Way Direct Mount, Series: 700LL, 1-1/4 in Nominal, 100 to 240 VAC, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 1.14 in Orifice, On/Off Electric Actuator, 4.33 in Inlet to Outlet Length, 10.78 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel/Delrin Trim, FKM/PTFE, 8.43 in L x 7.28 in W x 12.68 in H, Import
The Bonomi 8E3000 series electric actuated package features a 3000 psi stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and an investment cast CF8M body. The Valbia electric VB series actuator fits directly over the 3000 series square stem and ISO 5211 pad. The actuator also is standardly furnished with dual voltages, two extra limit switches, torque limiter, extended manual override, 75% duty cycle motor, in a IP67, NEMA 4, 4X techno polymer housing.
Specifications
Item Features
- Blow out proof stem, antistatic design
- ISO 5211 mounting pad
- 316 stainless steel antistatic stem
- Delrin ball seat
- PTFE body seal/thrust washer/stem packing
- FKM O-ring
- Valbia UL approved standard on/off plastic electric actuator
