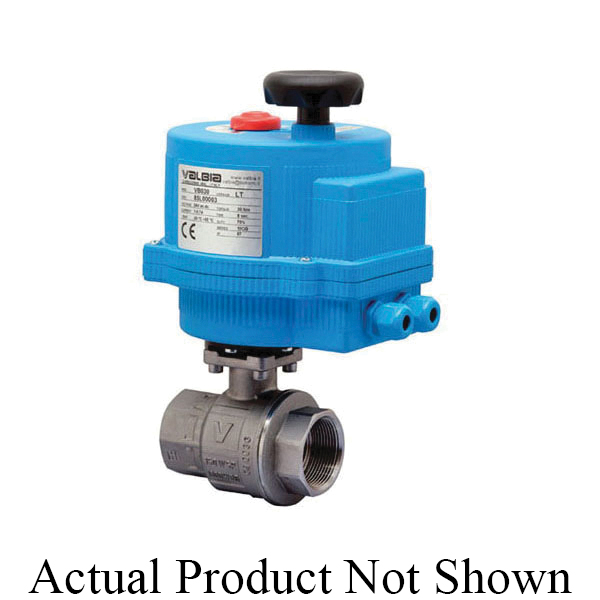

Bonomi 8E067-002-2-1/2 2-Piece 2-Way Direct Mount Electric Actuated Ball Valve, 2-1/2 in, FNPT, 316 Stainless Steel Body, 24 VDC, Import
CBPN: 228950
MPN:8E067-002-2-1/2
DESCRIPTION
Bonomi North America INOX-VAL Ball Valve Package, 2-Piece 2-Way Direct Mount, Series: 700076, 2-1/2 in Nominal, 24 VDC, FNPT, 1000 psi/150 psi Steam, -4 to 366 deg F, Full Port, Media: Steam/Water, 2-1/2 in Orifice, On/Off Electric Actuator, 6.1 in Inlet to Outlet Length, 11.9 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/PTFE/RPTFE Trim, FKM/PTFE, 8.43 in L x 7.28 in W x 14.2 in H, Import
The 8E067 packed series is ideally suited for commercial and industrial applications, where space and reliability are at a premium. The 8E067 package includes a stainless steel 1000 psi full port ball valve along with a Techno polymer housing electric motor. The NEMA 4, 4X motors incorporate dual voltages, 24AC/DC and 100-240VAC and are standardly furnished with two extra limit switches, a heater and a thermostat and a torque limiter for added protection. The NEMA 4, 4X housing is resistant to dusty areas and where water may be sprayed.
Bonomi 8E067-002-2-1/2 2-Piece 2-Way Direct Mount Electric Actuated Ball Valve, 2-1/2 in, FNPT, 316 Stainless Steel Body, 24 VDC, Import
CBPN: 228950
MPN:8E067-002-2-1/2
DESCRIPTION
Bonomi North America INOX-VAL Ball Valve Package, 2-Piece 2-Way Direct Mount, Series: 700076, 2-1/2 in Nominal, 24 VDC, FNPT, 1000 psi/150 psi Steam, -4 to 366 deg F, Full Port, Media: Steam/Water, 2-1/2 in Orifice, On/Off Electric Actuator, 6.1 in Inlet to Outlet Length, 11.9 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/PTFE/RPTFE Trim, FKM/PTFE, 8.43 in L x 7.28 in W x 14.2 in H, Import
The 8E067 packed series is ideally suited for commercial and industrial applications, where space and reliability are at a premium. The 8E067 package includes a stainless steel 1000 psi full port ball valve along with a Techno polymer housing electric motor. The NEMA 4, 4X motors incorporate dual voltages, 24AC/DC and 100-240VAC and are standardly furnished with two extra limit switches, a heater and a thermostat and a torque limiter for added protection. The NEMA 4, 4X housing is resistant to dusty areas and where water may be sprayed.
Specifications
Item Features
- ISO 5211 pad
- Blow out proof stem
- PTFE seats with O-ring backing for low operating torque
- PTFE seals and double O-ring stem seal design for extended cycle life
- 100% electronically tested in the open and closed position at 80 psi
- Thermal relief protection
- 316 Stainless steel stem
- FKM O-ring
- RPTFE ball seats
- Valbia UL approved standard on/off plastic electric actuator
