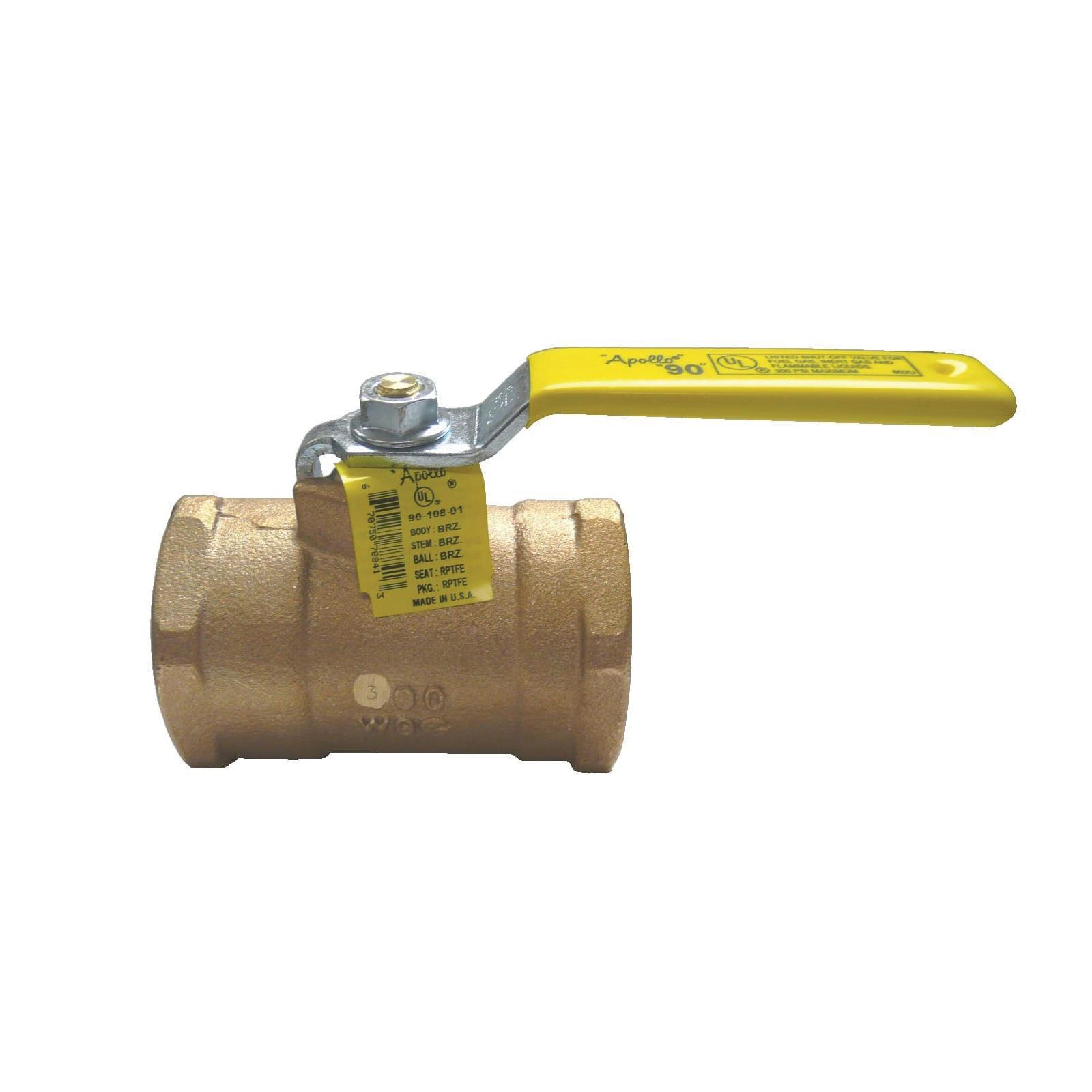

Apollo™ 9010801A 90-100 90-100 Uni-Body Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
CBPN: 1400
UPC:670750609572
MPN:9010801A
Price:
$205.22 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, Uni-Body, Series: 90-100, 2 in Nominal, FNPT End Style, 400 psig CWP/150 psig SWP Pressure, Standard Port, Lever Handle Actuator, Chrome Plated Brass Ball, 4.42 in Inlet to Outlet Length, 3.09 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE Softgoods, Domestic
Apollo™ 9010801A 90-100 90-100 Uni-Body Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
CBPN: 1400
MPN:9010801A
UPC:670750609572
Price:
$205.22 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, Uni-Body, Series: 90-100, 2 in Nominal, FNPT End Style, 400 psig CWP/150 psig SWP Pressure, Standard Port, Lever Handle Actuator, Chrome Plated Brass Ball, 4.42 in Inlet to Outlet Length, 3.09 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 4.64 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Rating: 400 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: RPTFE
Actuator Type: Lever Handle
Ball Material: Brass
Inlet to Outlet Length: 4.42 in
Manufacturer Name: Apollo Conbraco
Series: 90-100
Top to Inlet Center: 3.09 in
Trim Material: Brass/RPTFE
Type: Uni-Body
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B16 Ball/Retainer/Gland Nut/Stem | ASTM B584-C84400 Body | MSS SP-110 | UL Listed | PROP65: Cancer and Reproductive Harm
Item Features
- Reinforced seat and seal
- Blow-out proof stem design
- Adjustable packing gland
- One piece bronze body
- Compact
- Zinc plated steel lever handle with vinyl grip
- RPTFE seat and brass stem
