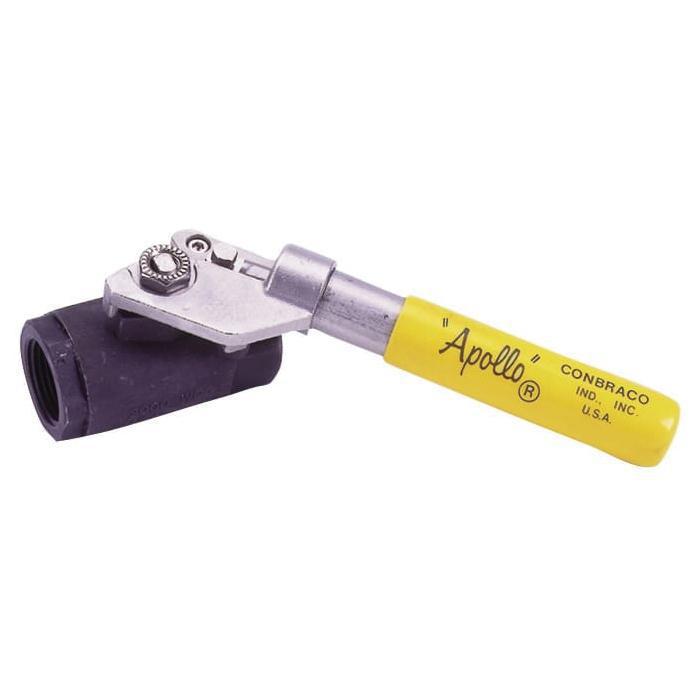

Apollo™ 8950301A 89-500 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Standard Port, MPTFE Softgoods, Domestic
CBPN:64878
UPC:670750158056
MPN:89-503-01A
Price:
$196.97 / EA
Prop 65:
DESCRIPTION
Apollo™ 8950301A, Ball Valve, 2-Piece, Series: 89-500, 1/2 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Spring Return Handle Actuator, Carbon Steel Ball, 2-1/4 in Inlet to Outlet Length, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic, Also Known As Dead Man Valve
Apollo™ 8950301A 89-500 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Standard Port, MPTFE Softgoods, Domestic
CBPN:64878
MPN:89-503-01A
UPC:670750158056
Price:
$196.97 / EA
Prop 65:
DESCRIPTION
Apollo™ 8950301A, Ball Valve, 2-Piece, Series: 89-500, 1/2 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Spring Return Handle Actuator, Carbon Steel Ball, 2-1/4 in Inlet to Outlet Length, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic, Also Known As Dead Man Valve
Specifications
Brand: Apollo™
Weight: 1.31 lbs
Nominal Size: 1/2 in
End Style: FNPT
Pressure Rating: 2000 psi CWP
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: MPTFE
Actuator Type: Spring Return Handle
Ball Material: Carbon Steel
Inlet to Outlet Length: 2-1/4 in
Manufacturer Name: Apollo Conbraco
Series: 89-500
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 WCB Body | ASTM A08 Ball | ASTM 276 Stem | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- All components of lever are stainless steel
- Zinc phosphate corrosion protection
- Operating torque is approximately three times standard valve torque
- Blow-out proof stem design
- Investment cast components
- Multi-fill seats
- Cold non-shock body rating
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Spring return to close
